Aluminum Clad Steel Wire / Alumoweld

Brief Description

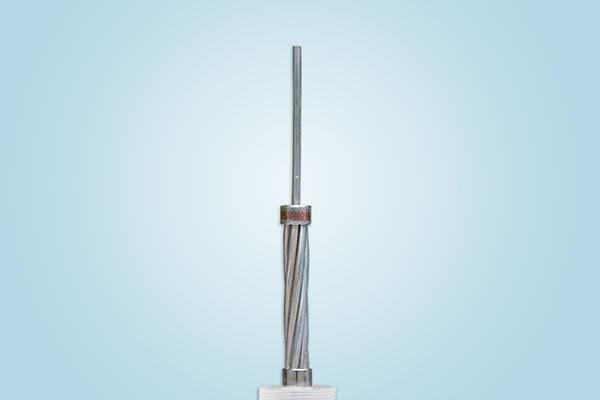

Aluminum clad steel wire is perfectly combined of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.

Application
The aluminum clad steel wire is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW, ground wire, messenger wire, guy wire formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware, etc.

Construction
Aluminum clad steel wire is a kind of bimetallic wire that aluminum covers on the steel core continuously and evenly.
Compared with ordinary aluminum cable steel reinforced, the conductor weight is 5% lighter, current-carrying capacity is 2-3% higher and power loss decreases 4-6%. Thus, the service life is long and it adds none erection cost.

Aluminum Clad Steel Wire/Alumoweld ASTM B416

Code Number Area No. of wires Diameters Weight Rated Strength DC Resistance
mm2 wire conductor kg/km kN ohm/km
3 No 5 Awg. 50,32 3 4,62 9,96 334,1 54,42 1.6990
3 No 6 Awg. 39 ,00 3 4,11 8,87 265,0 45,74 2.1420
3 No 7 Awg. 31,65 3 3,67 7,90 210,1 38,36 2.7010
3 No 8 Awg. 25,10 3 3,26 7,03 166,7 32,06 3.4060
3 No 9 Awg. 19,90 3 2,91 6,26 132,2 25,43 4.2940
3 No 10 Awg. 15,78 3 2,59 5,58 104,8 20,16 5.4150
7 No 5 Awg. 117,40 7 4,62 13,90 781,1 120,27 0,7426
7 No 6 Awg. 93,10 7 4,11 12,40 619,5 101,14 0,9198
7 No 7 Awg. 73,87 7 3,67 11,00 491,1 84,81 1.1600
7 No 8 Awg. 58,56 7 3,26 9,78 389,6 70,88 1.4630
7 No 9 Awg. 46,44 7 2,91 8,71 308,9 56,20 1.8440
7 No 10 Awg. 36,83 7 2,59 7,76 245,1 44,58 2.3250
7 No 11 Awg. 29,21 7 2,30 6,91 194,4 35,35 2.9320
7 No 12 Awg. 23,16 7 2,05 6,16 154,2 28,03 3.6970
19 No 5 Awg. 318,70 19 4,62 23,10 2129,0 326,39 0,2698
19 No 6 Awg. 252,70 19 4,11 20,60 1688,0 274,55 0,3402
19 No 7 Awg. 200,40 19 3,67 18,30 1339,0 230,18 0,4290
19 No 8 Awg. 158,90 19 3,26 16,30 1062,0 192,41 0,5409
19 No 9 Awg. 126,10 19 2,91 14,50 842,0 152,58 0,6821
19 No 10 Awg. 99,96 19 2,59 12,90 667,7 121,00 0,8601
37 No 5 Awg. 620,60 37 4,62 32,30 4170,0 635,43 0,1394
37 No 6 Awg. 492,20 37 4,11 28,80 3307,0 534,85 0,1757
37 No 7 Awg. 390,30 37 3,67 25,70 2623,0 448,09 0,2216
37 No 8 Awg. 309,50 37 3,26 22,90 2080,0 374,67 0,2794
37 No 9 Awg. 245,50 37 2,91 20,30 1649,0 279,11 0,3523
37 No 10 Awg. 194,70 37 2,59 17,90 1308,0 235,61 0,4443

Aluminum Clad Steel Wire/Alumoweld DIN 48201

Code Number Area No. of wires Diameters(mm) Weight Rated Strength DC Resistance
mm2 mm2 wire conductor kg/km kN ohm/km
25 24.25 7 2.1 6.3 162 31.56 3.546
35 34.36 7 2.5 7.5 229 44.72 2.499
50 49.48 7 3 9 330 64.4 1.736
70 65.81 19 2.1 10.5 441 85.65 1.313
95 93.27 19 2.5 12.5 626 121.39 0.925
120 116.99 19 2.8 14 785 152.26 0.737
150 147.11 37 2.25 15.7 990 191.46 0.587
185 181.62 37 2.5 17.5 1221 236.38 0.476
240 242.54 61 2.25 20.2 1635 299.05 0.357
300 299.43 61 2.5 22.5 2017 369.2 0.289
