ACAR/Aluminum Conductor Aluminum Alloy Reinforced

Features
1. The aluminum conductor aluminum alloy reinforced offers excellent balance between mechanical and electrical properties.
2. It has excellent corrosion resistance, owing to compatible materials in the centre core and outer layers.
3. The ACAR is a compromise choice among AAC, ACSR and AAAC. and sometimes can be a line engineer's cheer.
4. It has 1350 designates grade of pure aluminum.
5. It has 6201 designates aluminum alloy grade.

Application
The aluminum conductor aluminum alloy reinforced is an excellent conductor choice where current carrying capacity, higher strength and lower conductor weight are critical to the line design.

Construction

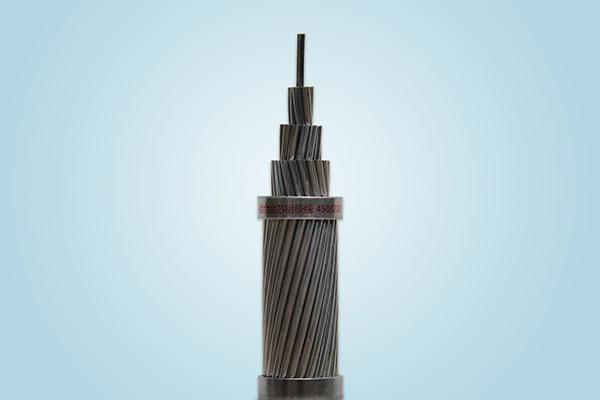

The ACAR is made of round aluminum 1350-H19 wires and round aluminum-alloy 6201-T81 core wires for use as overhead electrical conductors.

Standard
ASTM B 524, IEC 61089, etc.

ACAR/Aluminum Conductors Aluminum Alloy Reinforced IEC 61089

Characteristics of A1/A2 Conductors

Code Number Diameter No. of Wires Area Linear Mass Rated Strength D.C. Resistance at 20℃
Wire Cond Alum. Alloy Alum. Alloy Total

mm mm

mm2 mm2 mm2 kg/km kN ohm/km
16 1.76 5.28 4 3 9.73 7.30 17.0 46.6 3.85 1.7896
25 2.20 6.60 4 3 15.2 11.4 26.6 72.8 5.93 1.1453
40 2.78 8.35 4 3 24.3 18.3 42.6 116.5 9.25 0.7158
63 3.49 10.5 4 3 38.3 28.7 67.1 183.5 14.38 0.4545
100 4.40 13.2 4 3 60.8 45.6 106 291.2 22.52 0.2863
125 2.97 14.9 12 7 83.3 48.6 132 362.7 27.79 0.2302
160 3.36 16.8 12 7 107 62.2 169 464.2 35.04 0.1798
200 3.76 18.8 12 7 133 77.8 211 580.3 43.13 0.1439
250 4.21 21.0 12 7 167 97.2 264 725.3 53.92 0.1151
250 3.04 21.3 18 19 131 138 269 742.2 60.39 0.1154
315 3.34 23.4 30 7 263 61.3 324 892.6 60.52 0.0916
315 3.42 23.9 18 19 165 174 339 935.1 76.09 0.0916
400 3.76 26.3 30 7 334 77.8 411 1133.5 75.19 0.0721
400 3.85 27.0 18 19 210 221 431 1187.5 95.58 0.0721
450 3.99 27.9 30 7 375 87.6 463 1275.2 84.59 0.0641
450 4.08 28.6 18 19 236 249 485 1335.9 107.52 0.0641
500 4.21 29.4 30 7 417 97.3 514 1416.9 93.98 0.0577
500 4.31 30.1 18 19 262 277 539 1484.3 119.47 0.0577
560 4.45 31.2 30 7 467 109 576 1586.9 105.26 0.0515
560 3.45 31.0 54 7 504 65.4 570 1571.9 101.54 0.0516
630 3.71 33.4 42 19 454 205 660 1820.0 130.25 0.0458
630 3.79 34.1 24 37 271 417 688 1897.5 160.19 0.0458
710 3.94 35.5 42 19 512 232 743 2051.2 146.78 0.0407
710 4.02 36.2 24 37 305 470 775 2138.4 180.53 0.0407
800 4.18 37.6 42 19 577 261 838 2311.2 162.39 0.0361
800 4.27 38.4 24 37 344 530 873 2409.5 203.41 0.0361
900 4.43 39.9 42 19 649 294 942 2600.1 186.06 0.0321
900 3.66 40.2 54 37 567 388 955 2638.4 199.54 0.0321
1000 3.80 41.8 72 19 816 215 1032 2849.1 190.94 0.0289
1000 3.85 42.4 54 37 630 432 1061 2931.6 221.71 0.0289
1120 4.02 44.2 72 19 914 241 1155 3191.0 213.85 0.0258
1120 4.08 44.9 54 37 705 483 1189 3283.4 248.32 0.0258
1250 4.25 46.7 72 19 1020 269 1289 3561.4 238.68 0.0231
1250 4.31 47.4 54 37 787 539 1327 3664.5 277.14 0.0231
1400 4.50 49.4 72 19 1143 302 1444 3988.8 267.32 0.0207

Aluminum Conductors Aluminum Alloy Reinforced IEC 61089

Characteristics of A1/A3 Conductors

Code Number Diameter No. of Wires Area Linear Mass Rated Strength D.C. Resistance at 20℃
Wire Cond. Alum. Alloy Alum. Alloy Total

mm mm

mm2 mm2 mm2 kg/km kN ohm/km
16 1.76 5.29 4 3 9.78 7.33 17.1 46.8 4.07 1.7896
25 2.21 6.62 4 3 15.3 11.5 26.7 73.1 6.29 1.1453
40 2.79 8.37 4 3 24.4 18.3 42.8 117.0 9.82 0.7158
63 3.50 10.5 4 3 38.5 28.9 67.4 184.3 14.80 0.4545
100 4.41 13.2 4 3 61.1 45.8 107 292.5 23.49 0.2863
125 2.98 14.9 12 7 83.7 48.8 132 364.1 29.29 0.2302
160 3.37 16.8 12 7 107 62.5 170 466.0 36.95 0.1798
200 3.77 18.8 12 7 134 78.1 212 582.5 44.78 0.1439
250 4.21 21.1 12 7 167 97.6 265 728.1 55.98 0.1151
250 3.05 21.4 18 19 132 139 271 746.0 64.67 0.1154
315 3.34 23.4 30 7 263 61.4 325 894.4 62.40 0.0916
315 3.43 24.0 18 19 166 175 341 940.0 81.48 0.0916
400 3.77 26.4 30 7 334 78.0 412 1135.8 76.82 0.0721
400 3.86 27.0 18 19 211 222 433 1193.7 100.30 0.0721
450 3.99 28.0 30 7 376 87.7 464 1277.8 86.42 0.0641
450 4.10 28.7 18 19 237 250 487 1342.9 112.84 0.0641
500 4.21 29.5 30 7 418 97.5 515 1419.8 96.03 0.0577
500 4.32 30.2 18 19 263 278 542 1492.1 125.38 0.0577
560 4.46 31.2 30 7 468 109 577 1590.1 107.55 0.0515
560 3.45 31.1 54 7 505 65.5 570 1573.9 103.53 0.0516
630 3.72 33.4 42 19 456 206 662 1826.0 134.59 0.0458
630 3.80 34.2 24 37 272 420 692 1909.0 169.14 0.0458
710 3.95 35.5 42 19 514 232 746 2057.8 151.68 0.0407
710 4.03 36.3 24 37 307 473 780 2151.4 190.61 0.0407
800 4.19 37.7 42 19 579 262 840 2318.7 170.90 0.0361
800 4.28 38.5 24 37 346 533 879 2424.2 214.78 0.0361
900 4.44 40.0 42 19 651 294 945 2608.5 192.27 0.0321
900 3.66 40.3 54 37 569 390 959 2649.5 207.79 0.0321
1000 3.80 41.8 72 19 818 216 1034 2855.4 195.47 0.0289
1000 3.86 42.5 54 37 632 433 1066 2943.9 230.88 0.0289
1120 4.02 44.3 72 19 916 242 1158 3198.1 218.92 0.0258
1120 4.09 45.0 54 37 708 485 1194 3297.2 258.58 0.0258
1250 4.25 46.8 72 19 1022 270 1292 3569.3 244.33 0.0231
1250 4.32 47.5 54 37 791 542 1332 3679.9 288.60 0.0231
1400 4.50 49.5 72 19 1145 302 1447 3997.6 273.65 0.0207

Aluminum Conductors Aluminum Alloy Reinforced ASTM B524

Size (kcmil) Strand- ing (EC/6201) Diameter (ins.) Weight Per 1000 ft.
(lbs.)
Rated Strength (lbs.) Resistance OHMS/1000 ft. Allowable Ampacity+ (Amps)
Individual Wires Comp. Cable DC @ 20°C AC @ 75°C
6201 1350
355.0 12/7 0.1367 0.1367 0.683 332.1 8500 0.0514 0.0624 519
465.9 12/7 0.1566 0.1566 0.783 435.8 11000 0.0392 0.0477 616
503.6 12/7 0.1628 0.1628 0.814 471.1 11900 0.0362 0.0441 646
653.1 12/7 0.1854 0.1854 0.927 611.0 15400 0.0279 0.0342 760
739.8 30/7 0.1414 0.1414 0.990 692.7 15300 0.0240 0.0296 831
739.8 18/19 0.1414 0.1414 0.990 691.6 18800 0.0252 0.0308 814
853.7 30/7 0.1519 0.1519 1.063 799.3 17500 0.0208 0.0257 907
853.7 18/19 0.1519 0.1519 1.063 798.0 21500 0.0218 0.0268 890
927.2 30/7 0.1583 0.1583 1.108 868.2 19000 0.0192 0.0238 955
927.2 18/19 0.1583 0.1583 1.108 866.7 23400 0.0201 0.0247 936
1024.5 30/7 0.1664 0.1664 1.165 959.3 20900 0.0173 0.0216 1015
1024.5 18/19 0.1664 0.1664 1.165 957.7 25800 0.0182 0.0225 995
1081.0 30/7 0.1709 0.1709 1.196 1012.1 22100 0.0164 0.0205 1048
1081.0 18/19 0.1709 0.1709 1.196 1010.5 27200 0.0172 0.0213 1028
1109.0 30/7 0.1731 0.1731 1.212 1038.4 22700 0.0160 0.0200 1065
1109.0 18/19 0.1731 0.1731 1.212 1036.6 27900 0.0168 0.0208 1044
1172.0 30/7 0.1780 0.1780 1.246 1097.3 24000 0.0152 0.0190 1101
1172.0 18/19 0.1780 0.1780 1.246 1095.5 29500 0.0159 0.0198 1080
1197.0 30/7 0.1799 0.1799 1.259 1120.8 24500 0.0148 0.0187 1115
1197.0 18/19 0.1799 0.1799 1.259 1118.9 30200 0.0156 0.0194 1094
1280.0 30/7 0.1860 0.1860 1.302 1198.5 26200 0.0139 0.0175 1160
1280.0 18/19 0.1860 0.1860 1.302 1196.5 32200 0.0146 0.0182 1139
1361.0 42/19 0.1494 0.1494 1.344 1273.6 30300 0.0133 0.0168 1196
1527.0 42/19 0.1582 0.1582 1.424 1428.8 33600 0.0118 0.0151 1314
1703.0 42/19 0.1671 0.1671 1.504 1593.5 37500 0.0106 0.0137 1363
1933.0 42/19 0.1780 0.1780 1.602 1808.8 42500 0.00936 0.0123 1465
2267.0 42/19 0.1928 0.1928 1.735 2142.0 49900 0.00806 0.0108 1594
2493.0 72/19 0.1655 0.1655 1.821 2356.9 50400 0.00722 0.0099 1687
2493.0 54/37 0.1655 0.1655 1.821 2354.5 57600 0.00743 0.0101 1670
+Ampacity based on 75°C conductor temperature, 25°C ambient temperature, with 2 ft./sec. wind in the sun.
