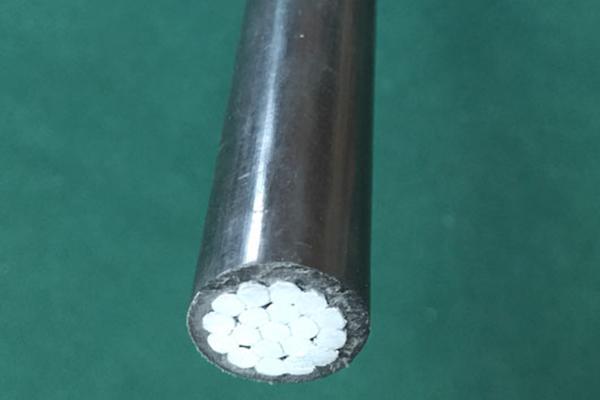

Covered Line Wire - Aluminum Conductor

Applications
Covered line wire is used primarily for 600v secondary overhead power distribution lines. It is not an electrically insulated conductor and often considered a bare conductor.

Construction
The aluminum conductors are 1350-H19 aluminum, 6201-T81 Aluminum Alloy, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HDPE) or cross-linked polyethylene(XLPE).

Standards
ASTM B-230 - Aluminum 1350-H19 Wire for Electrical Purposes
ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
ASTM B-1248 - Polyethylene Plastics Molding and Extrusion Materials.
ASTM C-8.35 - Specifications for Weather-Resistant Polyethylene-Covered Wire and Cable.
ICEAS-61-402

Covered line Wire ( Bare Overhead Conductor )
Code Name Size No. of wires Insulation Thickness (mm) Overall
Diameter
(mm)
Rated Strength (kg) Nominal Weight (kg/km) Allowable Ampacity+
A
AWG or kcmil Aluminum LDPE HDPE XLPE
AAC
Plum 6 7 0.762 6.198 255 36.61 50.66 51.27 51.27 100
Apricot 4 7 0.762 7.239 400 58.19 75.57 76.33 76.33 135
Peach 2 7 1.143 9.703 612 92.56 126.09 127.55 127.55 180
Nectarine 1 7 1.143 11.481 789 116.67 167.31 169.52 169.52 210
Quince 1/0 7 1.524 12.395 903 147.48 203.7 206.14 206.14 240
Haw 1/0 19 1.524 12.522 980 147.48 204.49 206.96 206.96 240
Orange 2/0 7 1.524 14.834 1139 186.02 257.9 261.02 261.02 280
Ironwood 2/0 19 1.524 13.691 1211 186.02 250.41 253.21 253.21 280
Fig 3/0 7 1.524 16.307 1377 233.64 315.53 319.08 319.08 320
Lemon 3/0 19 1.524 14.986 1501 233.64 306.53 309.7 309.7 320
Olive 4/0 7 1.524 16.307 1728 296.14 378.04 381.58 381.58 370
Pomegranate 4/0 19 1.524 16.459 1823 296.14 379.09 382.69 382.69 370
Sassalras 250 19 1.524 17.628 2043 348.68 439.88 443.84 443.84 420
Mulberry 266.8 19 1.524 17.653 2182 372.19 463.59 467.55 467.55 430
Basswood 300 19 1.524 18.999 2404 419.66 520.91 525.3 525.3 478
Anona 336.4 19 1.524 19.964 2697 469.51 578.04 582.75 582.75 495
Chinquapin 350 19 1.524 20.269 2790 488.12 598.98 603.79 603.79 525
Molles 397.5 19 2.032 22.454 3123 555.08 707.29 713.88 713.88 550
Sumac 450 37 2.032 23.673 3719 628 791.79 798.89 798.89 600
Huckleberry 477 37 2.032 24.257 3810 665.21 834.63 841.98 841.98 610
ACSR
Walnut 6 6/1 0.762 6.553 540 36.64 69.94 71.43 71.43 105
Butternut 4 6/1 0.762 7.874 844 58.04 107.15 107.15 107.15 135
Hickory 4 7/1 0.762 8.052 1070 58.04 120.54 122.03 122.03 135
Pignut 2 6/1 1.143 10.312 1293 92.27 175.6 177.09 177.09 180
Beech 2 7/1 1.143 10.643 1651 92.27 199.41 199.41 199.41 180
Chestnut 1 6/1 1.143 11.303 1610 116.37 17.27 218.76 218.76 210
Almond 1/0 6/1 1.524 13.157 1987 146.73 282.75 284.24 284.24 235
Pecan 2/0 6/1 1.524 14.402 2404 184.98 348.23 349.72 349.72 290
Filbert 3/0 6/1 1.524 15.799 3003 233.34 430.08 433.05 433.05 305
Buckeye 4/0 6/1 1.524 17.348 3787 394.21 531.27 535.74 535.74 345
Hackberry 266.8 18/1 1.524 18.517 3121 372.63 525.32 528.3 528.3 356
AAAC
Maple 6 7 0.762 6.553 503 42.41 59.53 61.01 61.01 78
Hornbeam 4 7 0.762 7.874 798 67.56 89.29 90.78 90.78 145
Linden 2 7 1.143 10.312 1270 107.44 147.33 147.33 147.33 190
Oilnut 1/0 7 1.524 11.887 2023 170.99 238.11 247.03 247.03 250
Waterash 2/0 7 1.524 14.402 2445 215.63 291.68 302.01 302.01 290
Shellbark 3/0 7 1.524 15.799 3080 271.59 358.65 370.55 370.55 335
