AAC/All Aluminum Conductor

Home » Products » Bare Conductor » AAC/All Aluminum Conductor

Application

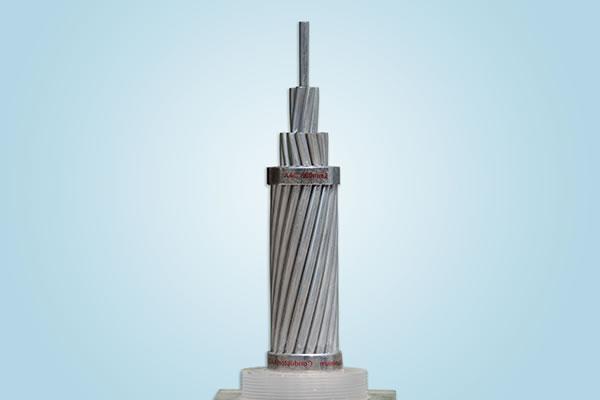

This all aluminum conductor is a kind of aluminum product made through stranding aluminum wires. It is used for the electricity distribution lines with short span length and small load-carrying capability of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines. This standard covers hard drawn circular aluminum wires for electric purposes to be used as component wires of hard drawn aluminum stranded cables and aluminum conductor steel reinforced.

Standard:
ASTM B 231, BS 215 Part 1, IEC 61089, DIN 48201, CSA C 49, JIS C 3109, etc.

Hard Drawn Aluminum

Characteristics of A1 Conductors IEC 61089

Code Name Area Stranding Approx. Overall Diameter Weight Nominal Breaking Load D.C. Resistance at 20℃
No. Dia.

mm2 mm2 mm mm kg/km kN ohm/km
10 10 7 1.35 4.05 27.4 1.95 2.8633
16 16 7 1.71 5.12 43.8 3.04 1.7896
25 25 7 2.13 6.40 68.4 4.50 1.1453
40 40 7 2.70 8.09 109.4 6.80 0.7158
63 63 7 3.39 10.2 172.3 10.39 0.4545
100 100 19 2.89 12.9 274.8 17.00 0.2877
125 125 19 3.27 14.5 343.6 21.25 0.2302
160 160 19 3.66 16.4 439.8 26.40 0.1798
200 200 19 4.09 18.3 549.7 32.00 0.1439
250 250 19 3.29 20.5 687.1 40.00 0.1151
315 315 37 3.71 23.0 867.9 51.97 0.0916
400 400 37 3.94 26.0 1102.0 64.00 0.0721
450 450 37 4.15 27.5 1239.8 72.00 0.0641
500 500 37 4.39 29.0 1377.9 80.00 0.0577
560 560 37 3.63 30.7 1542.9 89.60 0.0515
630 630 61 3.85 32.6 1738.3 100.80 0.0458
710 710 61 4.09 34.6 1959.1 113.60 0.0407
800 800 61 4.33 36.8 2207.4 128.00 0.0361
900 900 61 4.57 39.0 2483.3 144.00 0.0321
1000 1000 61 3.96 41.1 2759.2 160.00 0.0289
1120 1120 91 4.18 43.5 3093.5 179.20 0.0258
1250 1250 91 4.18 46.0 3452.6 200.00 0.0231
1400 1400 91 4.43 48.7 3866.9 224.00 0.0207
1500 1500 91 4.58 50.4 4143.1 240.00 0.0193

Construction
AAC is a concentric-lay-stranded conductor consisting of aluminum alloy 1350-H19 wires available in both single-layer and multi-layer constructions.

Package
The AAC is packaged in wooden drum, steel wooden drum, steel drum or coil.

Tong-Da is a professional all aluminium alloy conductor manufacturer and supplier in China. Our products include: AAC, AAAC, ACSR, Galvanized Steel Wire, Aluminium Clad Stel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc.
