ACSR/Aluminum Conductor Steel Reinforced

Description

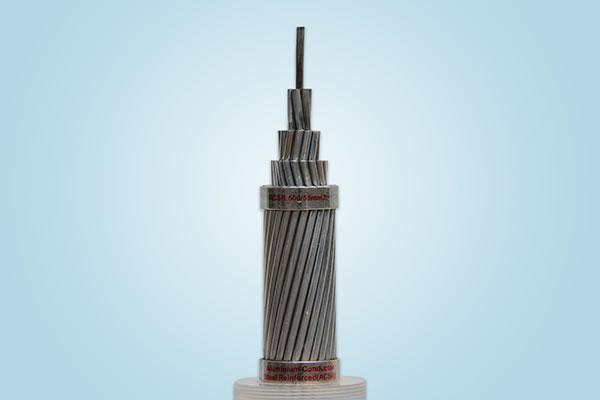

The aluminum conductor steel reinforced is made through stranding aluminum wires and steel wires, and is used as main power transmission line. Its inner part is the steel core, with the aluminum wires stranded around the steel core in a spiral manner and according to a certain rule. The steel core is used to enhance the strength of ACSR.

Application
With simple structure, the aluminum conductor steel reinforced is easy to set up and maintain, with low cost and high transmission capacity. It is advantageous for this ACSR to be put up across a valley or river or under other various special geographic conditions. The ACSR has advantages of sound electrical conductivity, high mechanical strength, high tensile strength, etc, and the pole distance can be lengthened. It is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.

Construction
ACSR is a concentric-lay-stranded conductor consisting of a single core wire or a stranded steel central core with one or more layers of 1350 H19 stranded aluminum wires. The steel core wires are protected from corrosion by galvanizing, aluminum-clad alloy or zinc-5% aluminum mischmetal alloy coating. Standard, high, extra and ultra high strength steel is also available.

Standard
ASTM B 232, BS 215 Part 2, IEC 61089, DIN 48204, etc.

ASTM B 232

Click to Get the Complete Specific Parameters
Code Name Area Stranding Approx. Overall Diameter Weight
Nominal Alum. Steel Total Alum. Steel Alum. Steel Total
  AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km
Turkey 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 37 17 54
Swan 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 58 27 85
Swanate 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58 42 100
Sparrow 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92 44 136
Sparate 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92 67 159
Robin 1 42.39 7.10 49.49 6/3.00 1/3.00 9.00 116 55 171
Raven 1/0 53.48 8.90 62.38 6/3.37 1/3.37 10.11 147 69 216
Quail 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 88 273
Pigeon 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 110 343
Penguin 4/0 107.23 17.87 125.10 6/4.77 1/4.77 14.31 294 139 433
Waxwing 266.8 135.16 7.48 142.64 18/3.09 1/3.09 15.45 373 58 431
Partridge 266.8 135.16 22.00 157.16 26/2.57 7/2.00 16.28 374 172 546
Ostrich 300 152.00 24.71 176.71 26/2.73 7/2.12 17.28 421 193 614
