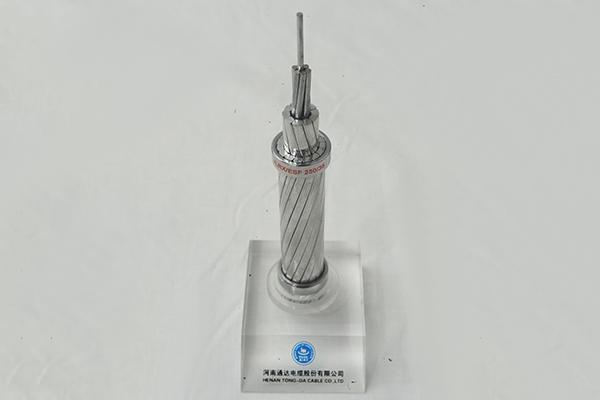

ACSS/TW / Aluminum Conductor Steel Supported-Trapezoidal Wire

Application
Aluminum conductor steel supported-trapezoidal wire is widely used in overhead distribution and transmission lines. This product has the special design of equal area and equal diameter. The equal area design enables equal capacity to go through smaller diameter conductor compared with a standard ACSS conductor. The equal diameter design allows more capacity to go through an equal diameter conductor compared with a standard ACSS conductor.

Construction
The aluminum-clad or zinc-5% aluminum mischmetal alloy coating protects the steel core wires from corrosion. High, extra and ultra high strength steels are also available. Non-specular finish can be used in all ACSS products.

Features
1. This product enjoys many advantages in design including lower power consumption, lower sag, and high corrosion resistance.
2. Compared with ACSR/TW, emergency power load causes less sag to this product. ACSS/TW has excellent self-damping properties so that it is not easily droop because of gradual deformation of the aluminum coating.
3. It can endure up to 250℃ temperature under the condition of constant working without becoming soft.
4. This product conforms to the ASTM B857 standards.

ACSS/TW (Area Equal to Standard ACSR Sizes) ASTM B 857
Code Word Size (kcmil) Cross Sectional Area (mm2) Type No. Stranding Diameter (mm) Weight (kg/km) Rated Breaking strength (kN) Resistance
Ω/km
Alum. Total No. of Al Layers No. of Al. Wires No. & Dia. Individual Steel Wire Complete Cable Steel core Total Alum. Steel Standard Strength High Strength DC @ 20°C AC @ 75°C
Flicker/ACSS/TW 477.0 241.7 273.1 13 2 18 7 x 2.388 19.71 7.16 912 667 245 57.83 63.16 0.1160 0.1423
Hawk/ACSS/TW 477.0 241.7 281.0 16 2 18 7 x 2.675 20.04 8.02 975 668 307 69.39 76.06 0.1153 0.1420
Parakeet/ACSS/TW 556.5 282.0 318.5 13 2 18 7 x 2.578 21.21 7.73 1064 779 285 67.61 73.84 0.0990 0.1220
Dove/ACSS/TW 556.5 282.0 327.9 16 2 20 7 x 2.891 21.64 8.67 1138 779 359 80.96 88.52 0.0987 0.1217
Rook/ACSS/TW 636.0 322.3 364.1 13 2 20 7 x 2.756 22.61 8.27 1214 890 326 76.95 84.52 0.0867 0.1070
Grosbeak/ACSS/TW 636.0 322.3 374.7 16 2 20 7 x 3.089 23.06 9.27 1300 890 409 92.08 99.64 0.0863 0.1067
Tern/ACSS/TW 795.0 402.8 430.6 7 2 17 7 x 2.250 24.38 6.75 1327 1110 217 63.16 67.61 0.0697 0.0867
Puffin/ACSS/TW 795.0 402.8 446.4 10 2 18 7 x 2.814 24.89 8.44 1451 1111 340 84.07 91.63 0.0697 0.0863
Condor/ACSS/TW 795.0 402.8 455.0 13 2 20 7 x 3.081 25.22 9.24 1519 1112 407 96.53 103.64 0.0693 0.0860
Drake/ACSS/TW 795.0 402.8 468.5 16 2 20 7 x 3.454 25.65 10.36 1625 1113 512 115.21 124.55 0.0690 0.0857
Phoenix/ACSS/TW 954.0 483.4 508.1 5 3 30 7 x 2.126 26.52 6.38 1536 1342 194 63.16 67.61 0.0587 0.0730
Rail/ACSS/TW 954.0 483.4 516.8 7 3 32 7 x 2.466 26.95 7.40 1600 1339 260 74.29 80.07 0.0583 0.0730
Cardinal/ACSS/TW 954.0 483.4 546.1 13 2 20 7 x 3.376 27.53 10.13 1824 1335 489 115.65 124.55 0.0577 0.0720
Snowbird/ACSS/TW 1033.5 523.7 550.6 5 3 30 7 x 2.212 27.66 6.64 1659 1449 210 68.50 72.95 0.0540 0.0677
Ortolan/ACSS/TW 1033.5 523.7 559.9 7 3 32 7 x 2.565 27.99 7.70 1734 1451 282 80.51 86.74 0.0540 0.0673
Curlew/ACSS/TW 1033.5 523.7 591.5 13 2 20 7 x 3.513 28.68 10.54 1975 1445 530 125.44 134.78 0.0533 0.0663
Avocet/ACSS/TW 1113.0 564.0 593.0 5 3 30 7 x 2.296 28.68 6.89 1787 1561 226 72.51 77.84 0.0500 0.0630
Bluejay/ACSS/TW 1113.0 564.0 603.0 7 3 33 7 x 2.664 29.03 7.99 1870 1566 305 86.74 93.41 0.0500 0.0630
Finch/ACSS/TW 1113.0 564.0 635.5 13 3 38 19 x 2.189 30.10 10.95 2126 1566 560 135.23 147.68 0.0497 0.0623
Oxbird/ACSS/TW 1192.5 604.3 635.4 5 3 30 7 x 2.377 29.64 7.13 1914 1671 243 77.84 83.18 0.0467 0.0590
Bunting/ACSS/TW 1192.5 604.3 646.0 7 3 33 7 x 2.756 30.00 8.27 1998 1673 326 92.97 100.09 0.0467 0.0590
Grackle/ACSS/TW 1192.5 604.3 680.9 13 3 38 19 x 2.266 31.12 11.33 2277 1677 600 145.01 157.91 0.0467 0.0583
Scissortail/ACSS/T 1272.0 644.6 677.7 5 3 30 7 x 2.456 30.56 7.37 2042 1783 259 83.18 88.96 0.0440 0.0557
Bittern/ACSS/TW 1272.0 644.5 689.1 7 3 35 7 x 2.847 30.99 8.54 2132 1784 348 99.20 106.76 0.0437 0.0553
Pheasant/ACSS/TW 1272.0 644.5 726.2 13 3 39 19 x 2.339 32.11 11.70 2428 1789 640 151.68 165.92 0.0437 0.0547
Dipper/ACSS/TW 1351.5 684.8 732.1 7 3 35 7 x 2.934 31.90 8.80 2265 1896 369 105.42 113.43 0.0413 0.0523
Martin/ACSS/TW 1351.5 684.8 771.5 13 3 39 19 x 2.410 33.02 12.05 2580 1902 679 161.03 176.15 0.0410 0.0517
Bobolink/ACSS/TW 1431.0 724.9 775.3 7 3 36 7 x 3.020 32.79 9.06 2400 2009 391 111.65 120.10 0.0390 0.0497
Plover/ACSS/TW 1431.0 725.1 817.0 13 3 37 19 x 2.482 33.96 12.41 2732 2013 719 170.81 186.38 0.0387 0.0490
Lapwing/ACSS/TW 1590.0 805.7 861.4 7 3 36 7 x 3.183 34.49 9.55 2665 2231 434 124.11 131.67 0.0350 0.0450
Falcon/ACSS/TW 1590.0 805.7 907.8 13 3 42 19 x 2.616 35.76 13.08 3036 2236 799 189.49 207.29 0.0350 0.0443
Chukar/ACSS/TW 1780.0 902.3 975.5 8 3 37 19 x 2.220 36.70 11.10 3070 2494 576 157.02 169.92 0.0313 0.0403
Bluebird/ACSS/TW 2156.0 705.4 1182.0 8 4 64 19 x 2.441 40.84 12.20 3742 3046 696 187.27 202.39 0.2600 0.0343

ACSS/TW (Diameter Equal to Standard ACSR Sizes) ASTM B 857

Code Word Size (kcmil) Cross Sectional Area (mm2) Type No. Stranding Diameter (mm ) Weight ( kg/km) Rated Breaking strength ( kN ) Resistance
Ω/km
Alum. Total No. of Al Layers No. of Al. Wires No. & Dia. Individual Steel Wire Complete Cable Steel core Total Alum. Steel Standard Strength High Strength DC @ 20°C AC @ 75°C
Mohawk/ACSS/TW 571.7 289.7 327.4 13 2 18 7x2.616 21.49 7.85 1093 800 294 69.39 76.06 0.0963 0.1190
Calumet/ACSS/TW 565.3 286.4 333.2 16 2 20 7x2.911 21.84 8.73 1154 790 364 81.85 89.85 0.0973 0.1197
Mystic/ACSS/TW 666.6 337.8 381.5 13 2 20 7x2.822 23.19 8.46 1274 932 342 80.96 88.52 0.0827 0.1023
Oswego/ACSS/TW 664.8 336.8 391.7 16 2 20 7x3.16 23.55 9.48 1359 931 429 96.53 104.09 0.0827 0.1020
Maumee/ACSS/TW 768.2 389.3 439.9 13 2 20 7x3.035 24.82 9.11 1470 1074 395 93.41 102.31 0.0717 0.0887
Wabash/ACSS/TW 762.8 386.6 449.4 16 2 20 7x3.381 25.15 10.14 1558 1067 491 110.76 119.21 0.0720 0.0890
Kettle/ACSS/TW 957.2 485.0 518.6 7 3 32 7x2.471 26.92 7.41 1606 1343 262 74.73 80.51 0.0583 0.0727
Fraser/ACSS/TW 946.7 479.7 527.0 10 3 35 7x2.921 27.36 8.79 1699 1330 369 93.86 101.86 0.0587 0.0733
Columbia/ACSS/TW 966.2 489.6 553.1 13 2 21 7x3.399 27.74 10.20 1847 1351 496 117.43 125.88 0.0593 0.0710
Suwannee/ACSS/TW 959.6 486.3 565.3 16 2 22 7x3.792 28.14 11.38 1961 1344 618 136.56 147.24 0.0573 0.0710
Cheyenne/ACSS/TW 1168.1 591.9 622.3 5 2 30 7x2.352 29.34 7.06 1875 1637 237 76.51 81.40 0.0477 0.0603
Genesee/ACSS/TW 1158.0 586.8 627.9 7 3 33 7x2.738 29.59 8.21 1946 1625 321 91.19 98.31 0.0480 0.0607
Hudson/ACSS/TW 1158.4 587.0 663.3 13 3 26 7x3.726 30.38 11.18 2216 1620 595 138.34 149.02 0.0477 0.0597
Catawba/ACSS/TW 1272.0 644.6 677.7 5 2 30 7x2.456 30.56 7.37 2042 1783 259 83.18 88.96 0.0440 0.0557
Nelson/ACSS/TW 1257.1 637.0 681.1 7 3 35 7x2.832 30.81 8.50 2108 1764 344 98.31 105.87 0.0443 0.0560
Yukon/ACSS/TW 1233.6 625.1 704.8 13 3 38 19x23.114 31.62 11.56 2360 1736 624 147.68 161.47 0.0450 0.0563
Truckee/ACSS/TW 1372.5 695.5 731.2 5 3 30 7x2.55 31.70 7.65 2204 1925 279 89.85 95.64 0.0407 0.0517
Mackenzie/ACSS/TW 1359.7 689.0 736.6 7 3 36 7x2.944 31.98 8.83 2277 1905 372 106.31 114.32 0.0410 0.0520
Thames/ACSS/TW 1334.6 676.1 761.9 13 3 39 19x2.398 32.77 11.99 2549 1877 672 159.25 173.93 0.0417 0.0523
St.Croix/ACSS/TW 1467.8 743.8 782.2 5 3 33 7x2.644 32.82 7.93 2358 2058 301 96.08 102.75 0.0380 0.0487
Miramichi/ACSS/TW 1455.3 737.4 788.4 7 3 36 7x3.048 33.07 9.14 2440 2042 399 113.87 120.55 0.0383 0.0487
Merrimack/ACSS/TW 1433.6 725.8 817.9 13 3 39 19x2.484 34.04 12.42 2738 2018 646 170.81 186.83 0.0387 0.0490
Platte/ACSS/TW 1569.0 795.0 835.9 5 3 33 7x2.728 33.88 8.18 2519 2199 320 102.75 109.43 0.0357 0.0457
Potomac/ACSS/TW 1557.4 789.2 843.8 7 3 36 7x3.152 34.16 9.46 2611 2184 427 121.44 129.00 0.0357 0.0460
Rio 1533.3 777.0 875.5 13 3 39 19x2.57 35.10 12.85 2928 2156 772 183.27 200.17 0.0363 0.0460
Schuylkill/ACSS/TW 1657.4 840.0 898.1 7 3 36 7x3.251 35.20 9.75 2780 2326 454 129.44 137.45 0.0337 0.0433
Pecos/ACSS/TW 1622.0 821.9 930.9 13 3 39 19x2.703 36.17 13.51 3135 2281 854 200.17 219.30 0.0340 0.0433
Pee Dee/ACSS/TW 1758.6 891.0 952.9 7 3 37 7x3.35 36.25 10.05 2949 2467 482 137.45 145.90 0.0317 0.0410
James/ACSS/TW 1730.6 876.8 988.0 13 3 34 19x2.731 37.34 13.65 3305 2434 870 206.40 225.97 0.0320 0.0410
Athabaska/ACSS/TW 1949.6 987.9 1056.6 7 3 42 7x3.536 38.20 10.61 3272 2735 537 152.57 162.36 0.0287 0.0373
Cumberland/ACSS/TW 1926.9 976.4 1099.9 13 3 42 19x2.878 39.24 14.39 3677 2710 967 229.53 250.88 0.0357 0.0450
Powder/ACSS/TW 2153.8 1091.1 1180.0 8 4 64 19x2.441 40.69 12.20 3717 3021 696 187.27 202.39 0.0260 0.0343
Santee/ACSS/TW 2627.3 1331.0 1436.6 8 4 64 19x2.697 44.75 13.49 4535 3686 850 228.19 247.32 0.0213 0.0290
