ACSR/AW-Aluminum Conductor Aluminum Clad Steel Reinforced

Description

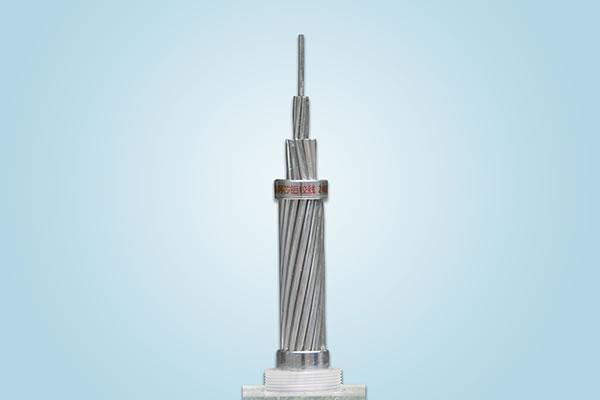

The aluminum conductor aluminum clad steel reinforced uses the aluminum clad steel as its core part and high purity aluminum as conductor. It features corrosion resistance, low resistance (LR), high tensile strength and so on. It is used for power transmission lines with large span length and high power. In addition to the conventional stranding, the ACSR/AW has one-layer or multi-layer reinforced conductors that are made of aluminum clad steel wires. In different widths of aluminum conductor steel reinforced, the aluminum conductor aluminum clad steel reinforced has its inner part made of aluminum clad steel, with the aluminum wires stranding around the core in a spiral manner and according to a certain rule.

Application
Having the advantages of corrosion resistance, high electric conductivity, etc., the ACSR/AW is ideal for overhead power transmission lines. With huge market potential, it is used for high-voltage overhead transmission lines installed under highly corrosive environments, electric railways, and so on.

Standard
ASTM B 549, etc.

Aluminum Conductor Aluminum Clad Steel Reinforced ASTM B549

Click to Get the Complete Specific Parameters
Code Name Area Stranding Approx. Overall Dia. Weight
Alum. Alumo-weld Total Alum. Alumo-weld Alum. Alumo-weld Total
  AWG or MCM mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km
Swanate 4 21.16 5.35 26.51 7/1.96 1/2.61 6.53 58.0 35 93
Sparrow 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 92.0 37 129
Sparate 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 92.0 56 148
Robin 1 42.39 7.10 49.49 6/3.00 1/3.00 9.00 116 47 163
Raven 1/0 53.48 8.90 62.38 6/3.37 1/3.37 10.11 147 59 206
Quail 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 185 74 259
Pigeon 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 233 94 327

ACSR/AW is identical to conventional ACSR with the only difference in the core where AW (aluminum clad steel) wires are substituted for galvanized steel wires. In many instances when compared, it has better properties than the conventional conductor.

ACSR/AW has the following advantages as compared to conventional ACSR:
1. Reduced power loss
2. High corrosion resistance
3. Less weight
4. Higher weight to strength ratios
