AACSR/All Aluminum Alloy Conductor Steel Reinforced

Description
Compared with the conventional ACSR, the all aluminum alloy conductor steel reinforced features high tensile strength, light weight, sound creep resistance and good sag property. When setting up lines, our AACSR can help to reduce the iron tower height, enlarge the span length, and lower the cost.

Application
The all aluminum alloy conductor steel reinforced is used for the power transmission lines with large span length installed under various severe weather conditions like snow, ice, storms, and so on. AACSR offers optimal strength for line design. Variable steel core stranding enables the desired strength to be achieved without sacrificing ampacity.

Standard
ASTM B 711, IEC 61089, DIN 48206, etc.

Click to Get the Complete Specific Parameters
Code Number Steel Ratio Area No. of Wires Wire Dia. Diameter Linear Mass
Alum. St. Total Alum. St. Alum. St. Core Cond

% mm2 mm2 mm2

mm mm mm mm kg/km
16 17 18.4 3.07 21.5 6 1 1.98 1.98 1.98 5.93 74.4
25 17 28.8 4.80 33.6 6 1 2.47 2.47 2.47 7.41 116.2
40 17 46.0 7.67 53.7 6 1 3.13 3.13 3.13 9.38 185.9
63 17 72.5 12.1 84.6 6 1 3.92 3.92 3.92 11.8 292.8
400 6 115 6.39 121 18 1 2.85 2.85 2.85 14.3 366.4
425 6 144 7.99 152 18 1 3.19 3.19 3.19 16.0 458.0
425 16 144 23.4 167 26 7 2.65 2.06 6.19 16.8 579.9
160 6 184 10.2 194 18 1 3.61 3.61 3.61 18.0 586.2

Construction

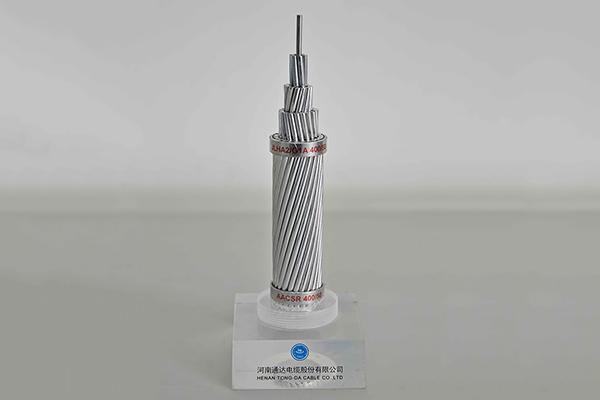

AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be a single wire or stranded, depending on the size. The proportion of aluminum alloy and steel can be varied to obtain sound current carrying capacity and mechanical strength in order to make our all aluminum alloy conductor steel reinforced best suited to each application. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Package
The AACSR is packaged in wooden drum, steel wooden drum, steel drum or coil.

Tong-Da is a professional all aluminium alloy conductor manufacturer and supplier in China. Our products include: AAC, AAAC, ACSR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc.
