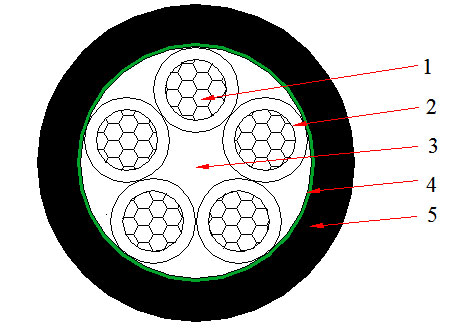

    0.6/1kV-5 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    5X1.5 0.7 1.8 11.7 170 12.1 21 30
    5X2.5 0.7 1.8 12.8 250 7.41 28 39
    5X4 0.7 1.8 14.0 330 4.61 37 51
    5X6 0.7 1.8 15.4 460 3.08 47 64
    5X10 0.7 1.8 18.8 700 1.83 65 86
    5X16 0.7 1.8 21.8 1000 1.15 84 110
    5X25 0.9 1.8 26.2 1540 0.727 110 140
    5X35 0.9 1.8 28.0 2080 0.524 135 170
    5X50 1.0 1.9 32.4 2760 0.387 170 205
    5X70 1.1 2.1 37.4 3890 0.268 215 250
    5X95 1.1 2.2 41.7 5120 0.193 265 300
    5X120 1.2 2.4 46.2 6530 0.153 310 345
    5X150 1.4 2.6 53.1 8000 0.124 350 385
    5X185 1.6 2.8 58.9 9800 0.0991 405 435
    5X240 1.7 3.0 65.6 12400 0.0754 480 500
    5X300 1.8 3.2 72.0 15450 0.0601 555 565
