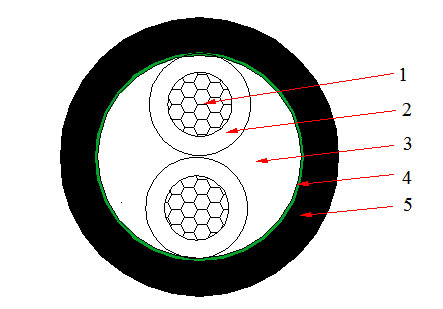

    0.6/1kV-2 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    2X1.5 0.7 1.8 10.4 105 12.1 24 35
    2X2.5 0.7 1.8 11.2 135 7.41 33 46
    2X4 0.7 1.8 12.2 175 4.61 43 59
    2X6 0.7 1.8 13.2 230 3.08 55 75
    2X10 0.7 1.8 15.4 340 1.83 76 100
    2X16 0.7 1.8 17.4 480 1.15 97 130
    2X25 0.9 1.8 20.5 700 0.727 130 165
    2X35 0.9 1.8 22.5 930 0.524 160 200
    2X50 1.0 1.8 20.3 1000 0.387 195 240
    2X70 1.1 1.8 23.3 1400 0.268 245 290
    2X95 1.1 1.9 26.2 1950 0.193 305 355
    2X120 1.2 2.0 29.4 2450 0.153 355 405
    2X150 1.4 2.2 32.6 3000 0.124 405 450
    2X185 1.6 2.3 36.0 3700 0.0991 465 510
