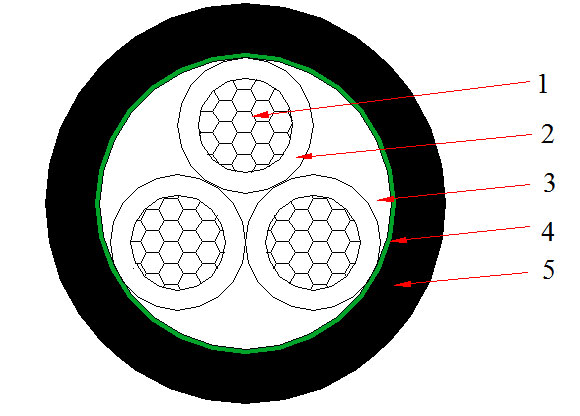

    0.6/1kV-3 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    3X1.5 0.7 1.8 11.8 135 12.1 21 30
    3X2.5 0.7 1.8 12.7 180 7.41 28 39
    3X4 0.7 1.8 13.8 225 4.61 37 51
    3X6 0.7 1.8 14.9 300 3.08 47 64
    3X10 0.7 1.8 17.2 430 1.83 65 86
    3X16 0.7 1.8 19.4 630 1.15 84 110
    3X25 0.9 1.8 22.8 940 0.727 110 140
    3X35 0.9 1.8 25.0 1250 0.524 135 170
    3X50 1.0 1.8 24.4 1500 0.387 170 205
    3X70 1.1 1.9 29.4 2140 0.268 215 250
    3X95 1.1 2.0 33.6 2960 0.193 265 300
    3X120 1.2 2.1 35.9 3760 0.153 310 345
    3X150 1.4 2.3 39.9 4420 0.124 350 385
    3X185 1.6 2.4 44.1 5950 0.0991 405 435
    3X240 1.7 2.6 51.1 7100 0.0754 480 500
    3X300 1.8 2.7 56.1 9000 0.0601 555 565
    3X400 2.0 3.0 62.4 10000 0.0470 640 640
