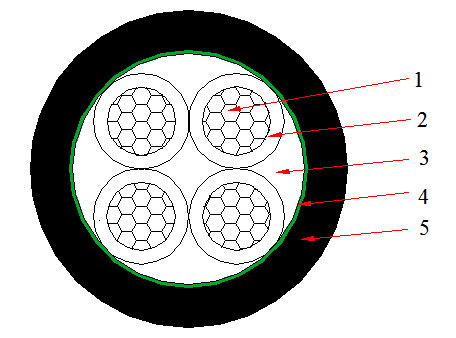

    0.6/1kV-4 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4X1.5 0.7 1.8 12.6 160 12.1 21 30
    4X2.5 0.7 1.8 13.6 210 7.41 28 39
    4X4 0.7 1.8 14.8 280 4.61 37 51
    4X6 0.7 1.8 16.0 380 3.08 47 64
    4X10 0.7 1.8 18.6 530 1.83 65 86
    4X16 0.7 1.8 21.0 800 1.15 84 110
    4X25 0.9 1.8 24.9 1240 0.727 110 140
    4X35 0.9 1.8 28.3 1600 0.524 135 170
    4X50 1.0 1.8 28.4 2000 0.387 170 205
    4X70 1.1 2.0 33.1 2800 0.268 215 250
    4X95 1.1 2.1 37.1 4000 0.193 265 300
    4X120 1.2 2.2 40.8 5000 0.153 310 345
    4X150 1.4 2.4 45.2 6100 0.124 350 385
    4X185 1.6 2.6 52.1 7600 0.0991 405 435
    4X240 1.7 2.8 57.8 9500 0.0754 480 500
    4X300 1.8 3.0 63.5 12000 0.0601 555 565
    4X400 2.0 3.3 70.9 16000 0.0470 640 640
