Quadruplex Service Drop -Aluminum Conductor

Applications
Used as overhead cable to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Specifications
Quadruplex service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474.

Construction

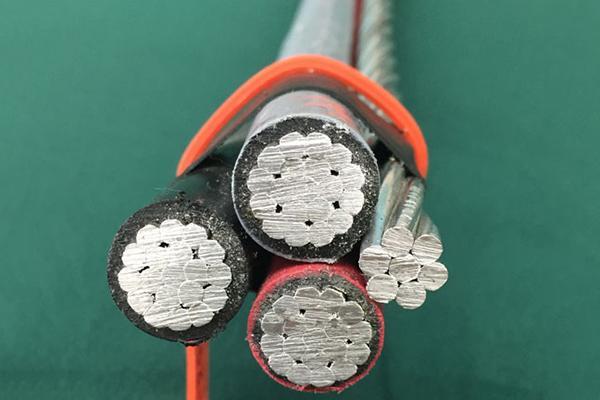

The aluminum conductors of this insulated cable are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)

Code Name Phase conductor Bare Neutral Message Nominal Weight ( kg/km ) Ampacity
Size & No.of wires Insulation Thick(mm) Nominal Diameter (mm) Size & No.of wires Rated Strength (kg) XLPE Aluminum Total
Bare OD Amps
AAAC
Bay 6-Solid 1.143 4.115 6.401 6-7 503.485 63 155 217 78
French-conch 6-7 1.143 4.674 6.960 6-7 503.485 71 155 226 78
Cerman-conch 4-Solid 1.143 5.182 7.468 4-7 798.318 79 247 324 103
Arabian 4-7 1.143 5.893 8.179 4-7 784.711 89 247 336 103
Belgain 2-7 1.143 7.417 9.703 2-7 1270.052 115 391 506 136
Saddle 1-19 1.524 8.433 11.481 2-7 1270.052 171 466 637 158
Plow 1/0-7 1.524 9.347 12.395 1/0-7 2023.011 192 624 814 182
Sherland 1/0-19 1.524 9.474 12.522 1/0-7 2023.011 193 624 817 182
Dapple-grey 2/0-7 1.524 10.516 13.564 2/0-7 2444.850 217 786 1005 210
Thoroughbred 2/0-19 1.524 10.643 13.691 2/0-7 2444.850 220 786 1007 210
Dobbin 3/0-7 1.524 11.786 14.834 3/0-7 3079.876 249 991 1238 242
Trotter 3/0-19 1.524 11.938 14.986 3/0-7 3079.876 251 991 1243 242
Pony 4/0-7 1.524 13.259 16.307 4/0-7 3882.730 286 1250 1534 279
Walking 4/0-19 1.524 13.411 16.459 4/0-7 3882.730 289 1250 1539 279
ACSR
Morochuca 6-Solid 1.143 4.115 6.401 6-6/1 533.722 63 149 229 78
Chola 6-7 1.143 4.674 6.96 6-6/1 533.722 71 149 237 78
Morgan 4-Solid 1.143 5.182 7.468 4-6/1 843.677 79 238 344 103
Hackney 4-7 1.143 5.893 8.179 4-6/1 843.677 90 238 356 103
Palomino 2-7 1.143 7.417 9.703 2-6/1 1292.732 115 377 557 136
Albino 1-19 1.524 8.433 11.481 1-6/1 1610.245 171 473 699 158
Standardbred 1/0-7 1.524 9.347 12.395 1/0-6/1 1986.724 192 598 859 182
Costena 1/0-19 1.524 9.474 12.522 1/0-6/1 1986.724 193 598 862 182
Chicoteagues 2/0-7 1.524 10.516 13.564 2/0-6/1 2404.027 217 753 1060 210
Grullo 2/0-19 1.524 10.643 13.691 2/0-6/1 2404.027 220 753 1063 210
mare 3/0-7 1.524 11.786 14.834 3/0-6/1 3002.766 249 951 1308 242
Suffolk 3/0-19 1.524 11.938 14.986 3/0-6/1 3002.766 251 951 1313 242
Stallion 4/0-7 1.524 13.259 16.307 4/0-6/1 3787.474 286 1198 1622 279
Appaloosa 4/0-19 1.524 13.411 16.459 4/0-6/1 3787.474 289 1198 1627 279
AAC
Quarter 6-Solid 1.143 4.115 6.401 6-7 255.371 63 149 211 78
Clydesdale 4-Solid 1.143 5.182 7.468 4-7 399.613 79 237 315 103
Pinto 4-7 1.143 5.893 8.179 4-7 399.613 89 237 326 136
Mustang 2-7 1.143 7.417 9.703 2-7 612.347 115 377 491 158
Shire 1-19 1.524 8.443 11.481 1-19 743.888 171 475 646 158
Libyan 1/0-7 1.524 9.347 12.395 1/0-7 902.644 192 598 790 182
Criollo 1/0-19 1.524 9.474 12.522 1/0-19 902.644 193 598 793 182
Orloff 2/0-7 1.524 10.516 13.564 2/0-7 1138.511 217 754 973 210
Peroheron 2/0-19 1.524 10.643 13.691 2/0-19 1138.511 220 754 976 210
Mongolian 3/0-7 1.524 11.786 14.834 3/0-7 1378.914 249 951 1199 242
Hanoverian 3/0-19 1.524 11.938 14.986 3/0-19 1378.914 251 951 1204 242
Singlefoot 4/0-7 1.524 13.259 16.307 4/0-7 1737.25 286 1199 1485 279
Oldenburg 4/0-19 1.524 13.411 16.459 4/0-19 1737.25 289 1199 1490 279
