Covered Aluminum Cables -35kV Voltage

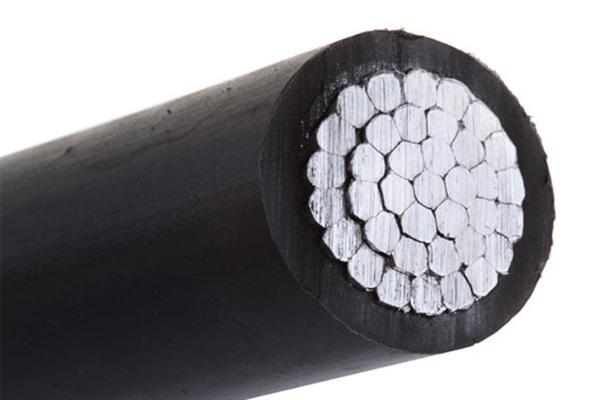

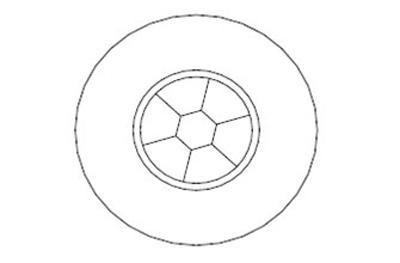

The XLPE covered 35kV aluminum conductor insulated cable features a compact round conductor made of aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoset material, it enables operation up to 90°C continuously implying in higher capacity when compared to the thermoplastic materials.

The main application for insulated aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These overhead cables are an excellent technical and economic option for companies all over the world, since they feature such advantages as low manufacturing cost and ease of installation.

Cross section No. of wires Conductor dia. Overall Diameter Minimum breaking load Approx. weight Max. DC-resistance at 20°C Ampacity 90°C
[mm²] [mm] [mm] [kgf] [kg/km] [Ohm/km] [A]
70 19 9.7 25.7 928 620 0.443 270
95 19 11.5 27.5 1259 732 0.32 329
120 19 12.9 28.9 1591 830 0.253 381
150 19 14.2 30.2 1988 937 0.206 432
185 37 16.2 32.2 2452 1083 0.164 497
240 37 18.4 34.4 3182 1290 0.125 589
300 37 20.7 36.7 3977 1502 0.1 674
