  5. Triplex Service Drop - Aluminum Conductor

Triplex Service Drop - Aluminum Conductor

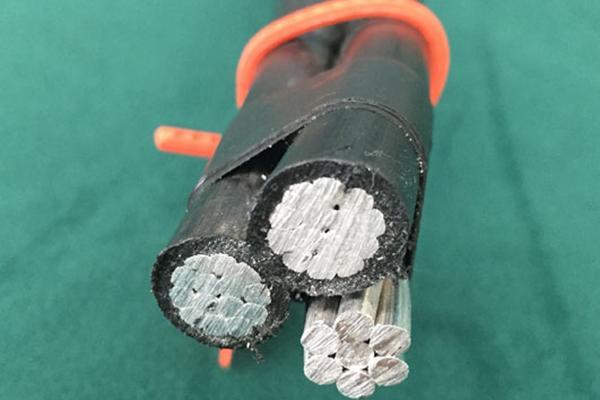

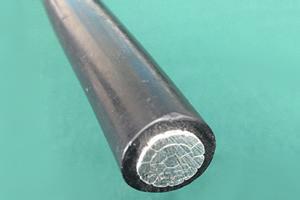

Triplex Service Drop Cable, Triplex Service Drop Aluminum Conductor

Triplex Service Drop - Aluminum Conductor

Applications
Used as overhead cable to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

Specifications
Triplex service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR).
B-399 Stranded 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
triplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Construction

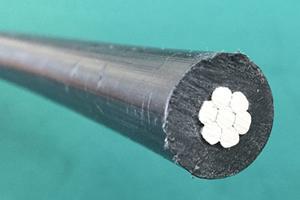

Aluminum conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE).
Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

Code Name Phase conductor Bare Neutral Message Nominal Weight (kg/km) Allowable Ampacity
Size & No.of wires Insulation Thick(mm) Nominal Diameter (mm) Size & No.of wires Rated Strength (kg) XLPE Aluminum Total (A)
Bare OD
AAAC
Homarus 6-Solid 1.14 4.115 6.4 6-7 499 42 118 159 78
Minex 6-Solid 1.14 4.115 13.3 6-7 499 42 118 159 78
Cabera 6-7 1.14 4.65 6.9 6-7 499 48 118 165 78
Hippa 6-7 1.14 4.65 6.9 6-7 499 48 118 165 78
Artemia 4-Solid 1.14 5.182 7.5 6-7 499 52 162 214 103
Maria 4-7 1.14 5.89 8.2 6-7 499 60 188 247 103
Crab 4-7 1.14 5.89 8.2 6-7 499 60 162 222 103
Ludia 4-Solid 1.14 5.182 7.5 6-7 499 52 162 214 103
Prawn 4-Solid 1.14 5.182 7.5 4-7 798 52 188 240 103
Metalia 4-7 1.14 5.89 8.2 4-7 798 60 188 247 103
Bamacles 4-7 1.14 5.89 8.2 4-7 798 60 188 247 103
Solaster 2-7 1.14 7.42 9.7 4-7 798 76 258 333 136
Pagarus 2-7 1.52 7.42 10.5 4-7 798 100 258 357 136
Shrimp 2-7 1.14 7.42 9.7 2-7 1270 76 298 374 136
Lobster 2-7 1.52 7.42 10.5 2-7 1270 100 298 397 136
Encope 1-19 1.52 8.43 11.5 2-7 1270 115 347 461 158
Sanderab 1/0-7 1.52 9.35 12.4 2-7 1270 128 409 537 182
Echinus 1/0-19 1.52 9.47 12.5 2-7 1270 130 409 539 182
Gammarus 1/0-7 1.52 9.35 12.4 1/0-7 2023 128 473 601 182
Leda 1/0-19 1.52 9.47 12.5 1/0-7 2023 130 473 603 182
Crayfish 2/0-7 1.52 10.5 13.6 2-7 1270 146 487 631 210
Sipho 2/0-19 1.52 10.6 13.7 2-7 1270 147 487 634 210
Dungenese 2/0-7 1.52 10.5 13.6 2/0-7 2445 146 595 740 210
Cyclops 2/0-7 1.52 10.6 13.7 2/0-7 2445 147 595 743 210
Slug 3/0-7 1.52 11.8 14.8 1/0-7 2023 165 650 816 242
Fulgur 3/0-19 1.52 11.9 15.0 1/0-7 2023 168 650 819 242
Balanus 3/0-19 2.03 11.9 16.0 1/0-7 2023 216 650 868 242
Stonecrab 3/0-7 1.52 11.8 14.8 3/0-7 3080 165 752 917 242
Flustra 3/0-7 1.52 11.9 15.0 3/0-7 3080 168 752 920 242
Crisia 3/0-19 2.03 11.9 16.0 3/0-7 3080 216 752 969 242
Squid 4/0-7 1.52 13.3 16.3 2/0-7 2431 191 820 1011 279
Area 4/0-19 1.52 13.4 16.5 2/0-7 2431 192 820 1012 279
Bugula 4/0-19 2.03 13.4 17.5 2/0-7 2431 246 820 1066 279
Kingerab 4/0-7 1.52 13.3 16.3 4/0-7 3883 191 948 1137 279
Lepas 4/0-19 1.52 13.4 16.5 4/0-7 3883 192 948 1140 279
Cassi 4/0-19 2.03 13.4 17.5 4/0-7 3883 246 948 1194 279
ACSR
Paludina 6-Solid 1.14 4.115 6.401 6-6/1 540 42 112 170 79
Voluta 6-7 1.14 4.67 6.960 6-6/1 540 48 112 176 79
Bolma 6-7 1.52 4.67 7.722 6-6/1 540 64 112 194 79
Scallop 6-Solid 1.14 5.182 7.468 6-6/1 540 52 155 225 138
Stombus 4-7 1.14 5.89 8.179 6-6/1 540 60 155 232 138
Carnea 4-7 1.52 5.89 8.941 6-6/1 540 80 155 253 138
Whelk 4-Solid 1.14 5.182 7.468 4-6/1 844 52 177 258 138
Periwinkle 4-7 1.14 5.89 8.179 4-6/1 844 60 177 263 138
Calma 4-7 1.52 5.89 8.941 4-6/1 844 80 177 284 138
Cockle 2-7 1.14 5.89 8.179 4-6/1 844 60 247 335 183
Gebia 2-7 1.52 5.89 8.941 4-6/1 844 80 247 354 183
Conch 2-7 1.14 5.89 8.179 2-6/1 1293 60 281 384 183
Uca 2-7 1.52 5.89 8.941 2-6/1 1293 80 281 405 183
Vemeths 1-7 1.52 8.33 11.379 1-6/1 1610 113 354 522 210
Atya 1-19 1.52 8.33 11.379 1-6/1 1610 113 430 524 210
Janthina 1/0-7 1.52 8.33 11.379 2-6/1 1293 113 393 549 242
Ranella 1/0-19 1.52 9.47 12.522 2-6/1 1293 130 393 566 242
Neritina 1/0-7 1.52 9.35 12.395 1/0-6/1 1987 128 448 644 242
Cenia 1/0-19 1.52 9.47 12.522 1/0-6/1 1987 130 448 646 242
Cavolinia 2/0-7 1.52 10.5 13.564 1-6/1 1610 146 496 697 279
AAC
Halotis 6-Solid 1.14 4.115 6.4 6-7 255 42 110 152 78
Pike 6-7 0.76 4.67 6.2 6-7 255 31 112 143 78
Fusus 4-Solid 1.14 5.182 7.5 4-7 400 52 177 229 103
Oyster 4-7 1.14 5.89 8.2 4-7 400 76 177 237 103
Clam 2-7 1.14 7.42 9.7 2-7 612 100 281 359 136
Pyrula 1-7 1.52 8.33 11.4 1-7 744 113 356 467 158
Hyas 1-19 1.52 8.43 11.5 1-7 744 115 356 469 158
Murex 1/0-7 1.52 9.35 12.4 1/0-7 903 128 385 513 182
Purpura 1/0-19 1.52 9.47 12.5 1/0-7 903 130 385 515 182
Nasa 2/0-7 1.52 10.52 13.6 2/0-7 1139 146 566 710 210
Trophon 2/0-7 1.52 10.64 13.7 2/0-7 1139 147 566 713 210
Quahog 3/0-7 2.03 11.79 15.9 3/0-7 1379 214 713 926 242
Lone 2/0-19 2.03 11.94 16 3/0-7 1379 217 713 929 242
Melita 3/0-19 1.52 11.94 15 3/0-19 1501 168 713 881 242
Coquina 4/0-7 1.52 13.26 16.3 4/0-7 1737 191 899 1089 279
Tusk 4/0-7 2.03 13.26 17.3 4/0-7 1737 243 899 1141 279
Apus 4/0-19 2.03 13.41 17.5 4/0-7 1737 246 899 1144 279
Portunus 4/0-19 1.52 13.41 16.5 4/0-19 1823 194 899 1091 279
Chiton 266.8-19 2.03 14.88 18.9 266.8-19 2254 277 1133 1409 310
Nannynose 336.4-19 2.03 16.92 21 336.4-19 2790 321 1427 1749 330
