Covered Aluminum Cables -15kV Voltage

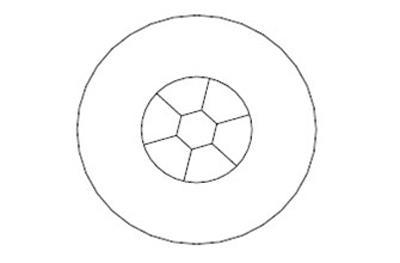

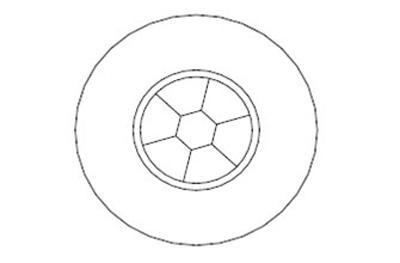

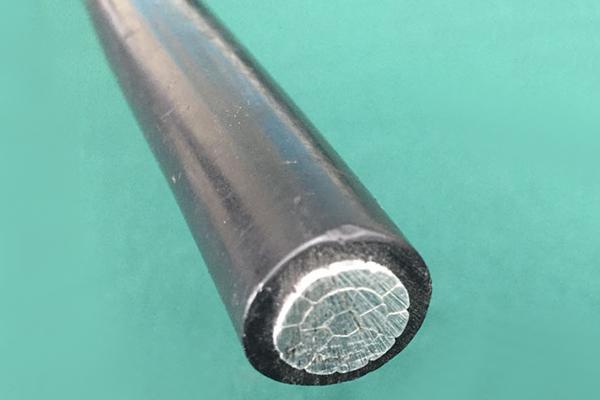

The XLPE 15V aluminum conductor insulated cable features a compact round conductor typically made of aluminum strands, blocked or not, and comes with a cross-linked polyethylene (XLPE) cover in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoset material, the 15KV aluminum conductor insulated cable enables operation up to 90°C continuously all while delivering higher capacity when compared to the thermoplastic materials.

Main applications for insulated aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These overhead cables are an excellent technical and economic option for companies all over the world, since they have such advantages as low manufacturing cost and ease of installation.

Cross section No. of wires Conductor dia. Overall Diameter Minimum breaking load Approx. weight Max. DC-resistance at 20°C Ampacity 90°C
[mm²] [mm] [mm] [kgf] [kg/km] [Ohm/km] [A]
35 7 7.1 13.6 464 190 0.868 187
50 7 8.2 14.7 663 235 0.641 225
70 19 9.7 16.2 928 315 0.443 282
95 19 11.5 18 1259 400 0.320 345
120 19 12.9 19.4 1591 500 0.253 401
150 19 14.2 20.7 1988 580 0.206 456
185 37 16.2 22.6 2452 695 0.164 525
240 37 18.4 24.9 3182 875 0.125 625
300 37 20.7 27.1 3977 1070 0.100 721
