0.6/1 kV NA2XBY Cable (AL/XLPE/STA/PVC)

0.6/1 kV NA2XBY Cable (AL/XLPE/STA/PVC)

  • 1 Core
  • 2 Core
  • 3 Core
  • 4 Core
  • 5 Core
  • 3+1 Core
  • 4+1 Core
  • 3+2 Core
    • Back
    Inquiry

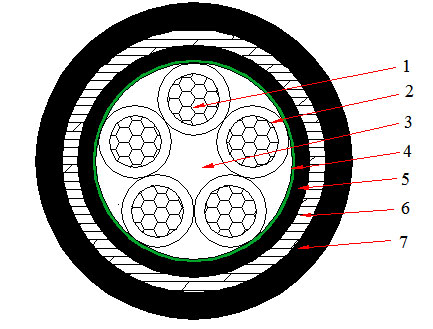

    0.6/1kV-5 Core Aluminum Conductor XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
    Nominal cross sectional area Insulation thickness Non-magnetic steel tape thickness Sheath thickness Approximate outer diameter Approx.
    weight     		Max.D.C resistance of conductor（20℃） Current carrying capacity
    mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
    5X2.5 0.7 0.2 1.8 15.6 321 12.1 - 23
    5X4 0.7 0.2 1.8 16.8 376 7.41 - 30
    5X6 0.7 0.2 1.8 18.2 443 4.61 - 38
    5X10 0.7 0.2 1.8 21.6 592 3.08 50 47
    5X16 0.7 0.2 1.8 24.6 763 1.91 64 62
    5X25 0.9 0.2 1.8 29.0 1029 1.2 86 78
    5X35 0.9 0.2 1.9 31.0 1236 0.868 105 94
    5X50 1.0 0.2 2.1 35.7 1616 0.641 125 110
    5X70 1.1 0.5 2.3 42.4 2528 0.443 165 135
    5X95 1.1 0.5 2.4 47.2 3172 0.32 200 160
    5X120 1.2 0.5 2.6 51.8 3801 0.253 235 185
    5X150 1.4 0.5 2.7 57.6 4604 0.206 270 205
    5X185 1.6 0.5 2.9 63.8 5574 0.164 310 235
    5X240 1.7 0.5 3.2 70.7 6859 0.125 365 260
    5X300 1.8 0.5 3.4 78.0 8305 0.1 420 290
