RHH/RHW-2/USE Cable

Applications
The RHH/RHW-2/USE cable is suitable for commercial and industrial application. It can be installed indoors and outdoors in both dry and wet places, such as cable conduit, underground pipeline, and some others. In addition, this heat resistant cable supports overhead installation and direct burial installation.

With the rated voltage of 600V, the RHH/RHW-2/USE cable is produced in compliance with NEC standard. Therefore, it can be used for continuous operation, emergency overload conditions, and short circuit conditions, with the maximum temperature of 90℃, 130℃, and 250℃, respectively.

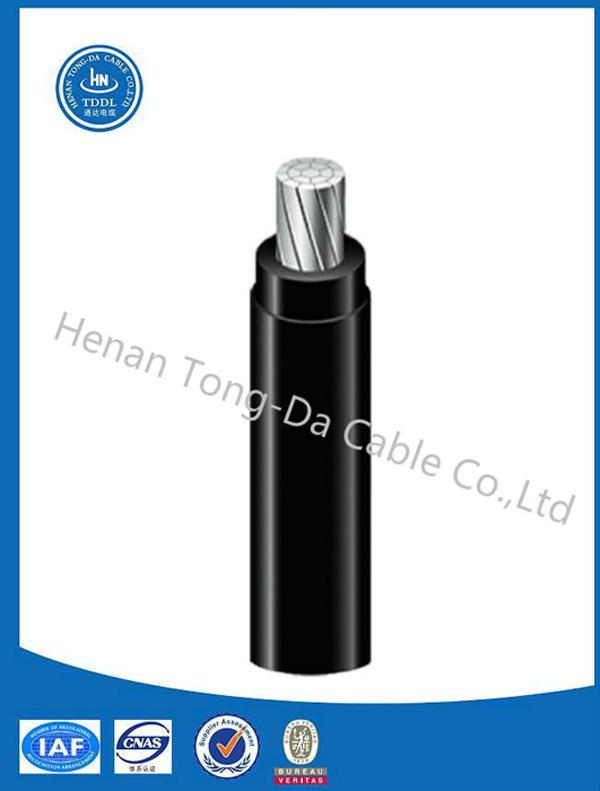

Constructions
1. Stranded AA-8000 aluminum alloy conductor
2. Black cross-linked polyethylene (XLP) insulation sheath with good resistance to abrasion, moisture, heat and sunlight.

Standard
The RHH/RHW-2/USE cable is strictly produced according to UL Standard 44 (RHH or RHW-2) and UL Standard 854 (USE-2). In addition, the power cable conforms to Federal Specification A-A-59544 and the requirement specified in NEC.

Installation
For high efficiency, the single conductor cable can be paralleled or multiplexed. Meanwhile, pre-installation in conduit is also available.

Specifications of RHH/RHW-2/USE Cable
Conductor Size (AWG or kcmil) Insulation Sheath Thickness (mils) Nominal O.D.(mils) Allowable Ampacity * (Amps) Approximate Net Weight Per 1000ft (lbs)
60℃ 75℃ 90℃
8 60 257 30 40 45 36
6 60 292 40 50 60 49
4 60 336 55 65 75 65
2 60 391 75 90 100 94
1 80 462 85 100 115 126
1/0 80 499 100 120 135 151
2/0 80 539 115 135 150 182
3/0 80 586 130 155 175 221
4/0 80 638 150 180 205 269
250 95 713 170 205 230 326
300 95 763 190 230 255 381
350 95 809 210 250 280 435
400 95 852 225 270 305 488
500 95 929 260 310 350 595
700 110 1100 310 375 420 829
750 110 1131 320 385 435 881
1000 110 1283 375 445 500 1145
