Rubber Sheathed Flexible Cable
Rubber Flexible Cable, Flexible Cores Rubber Sheathed Cable, Allied Wire & Cable
Standard
The rubber sheathed flexible cable with rated voltage up to 450/750V is in accordance with the standard GB5013-1997.
Rubber insulated flexible wire and cable with rated voltage up to 450/750V is in accordance with the standard JB8735-1998.
Specific Property for Using
The long-time permissible working temperature of conductor is 60℃.
The product is used for the drive devices, household electric instruments, all kinds of portable electrical equipment and electromotive tools at A.C rated voltage U./U up to and including 450/750V.
| Type | Name | Rated Voltage (V) | Section Area (mm2) | No. of Core | Main Application |
| 245 IEC 53 YZ | Common Rubber Sheathed Flexible Cable | 300/500 | 0.75-2.5 | 2, 3, 4, 5 | Used for various movable electrical equipment and tools |
| 245 IEC 57 YZW | Common Chloroprene Rubber Sheathed Flexible Cable | 0.75-2.5 | 2, 3, 4, 5 | ||
| 4-6 | 2, 3, 4, 5 | ||||
| YZ YZW | Medium Type Rubber Sheathed Flexible Cable | 300/500 | 1.5-6 | 4 (three and half cores) | Used for various movable electrical equipment and be able to enhance the outer mechanical force |
| 0.75-6 | 6 | ||||
| 245 IEC 66 YCW | Heavy Type Rubber Sheathed Flexible Cable for Using Outdoor | 450/750 | 1.5-400 | 1 | |
| 1.0-25 | 2 | ||||
| 1.0-95 | 3 | ||||
| 1.0-150 | 4 | ||||
| 1.0-25 | 5 | ||||
| YC | Heavy Type Rubber Sheathed Flexible Cable | 450/750 | 1.5-400 | 1 | |
| 1.5-95 | 2 | ||||
| 1.5-150 | 3, 4 | ||||
| 1.5-25 | 5 | ||||
| 2.5-150 | 4 (three and half cores) | ||||
| YCW | Heavy Type Rubber Sheathed Flexible Cable for Using Outdoor | 450/750 | 35-95 | 2 | |
| 120-150 | 3 | ||||
| 2.5-150 | 4 (three and half cores) |
Construction

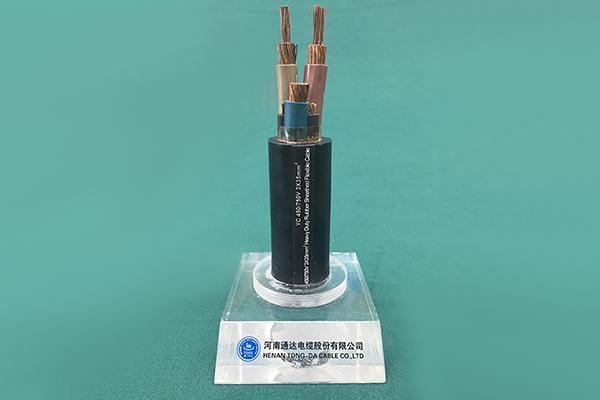

The rubber sheathed flexible cable is made from copper conductor, rubber insulation, and rubber sheath.
Package
The rubber sheathed flexible cable comes in coils or drums.
As a specialized rubber sheathed flexible cable manufacturer in China, Tong-Da also provides mining cable, PVC insulated power cable, ACSR, aluminium conductor steel reinforced, anti-corrosion ACSR, and other related products.
