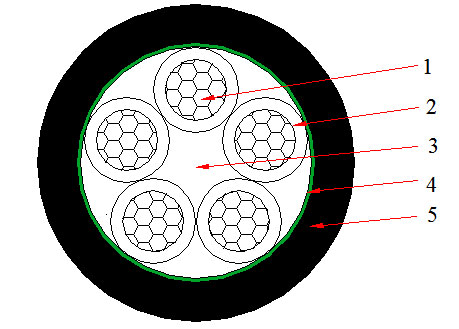

    0.6/1kV-5 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    5X2.5 0.8 1.8 13.3 195.8 12.1 22 -
    5X4 1 1.8 15.6 271.3 7.41 29 -
    5X6 1 1.8 17.1 320.4 4.61 38 -
    5X10 1 1.8 20.4 455.3 3.08 51 55
    5X16 1 1.8 23.4 593.7 1.91 65 73
    5X25 1.2 1.8 27.9 837.1 1.2 80 94
    5X35 1.2 1.9 29.7 1026.1 0.868 98 110
    5X50 1.4 2.0 34.6 1377.5 0.641 120 135
    5X70 1.4 2.2 39.2 1806.4 0.443 150 165
    5X95 1.6 2.3 45.2 2425.6 0.32 180 200
    5X120 1.6 2.5 49.3 2934.6 0.253 200 230
    5X150 1.8 2.6 54.8 3650.9 0.206 235 255
    5X185 2 2.8 60.5 4468.0 0.164 280 290
    5X240 2.2 3.1 68.3 5734.5 0.125 320 335
    5X300 2.4 3.3 75.5 7074.1 0.1 380 375
