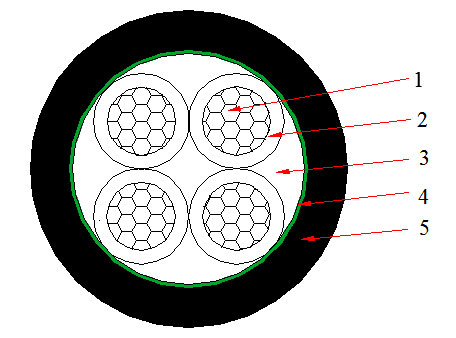

    0.6/1kV-4 Core Aluminum Conductor PVC Insulated PVC Sheathed Power Cable
    No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
    (mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
    4X2.5 0.8 1.8 12.3 160 12.1 17 -
    4X4 1 1.8 14.4 224 7.41 22 -
    4X6 1 1.8 15.7 270 4.61 29 -
    4X10 1 1.8 18.7 373 3.08 38 55
    4X16 1 1.8 21.3 494 1.91 51 73
    4X25 1.2 1.8 25.3 692 1.2 65 94
    4X35 1.2 1.8 26.9 838 0.868 80 110
    4X50 1.4 1.9 31.2 1118 0.641 98 135
    4X70 1.4 2.0 35.3 1464 0.443 120 165
    4X95 1.6 2.2 40.7 1962 0.32 150 200
    4X120 1.6 2.3 44.3 2371 0.253 180 230
    4X150 1.8 2.5 49.2 2946 0.206 200 255
    4X185 2 2.6 54.4 3603 0.164 235 290
    4X240 2.2 2.9 61.3 4619 0.125 280 335
    4X300 2.4 3.1 67.8 5694 0.1 320 375
