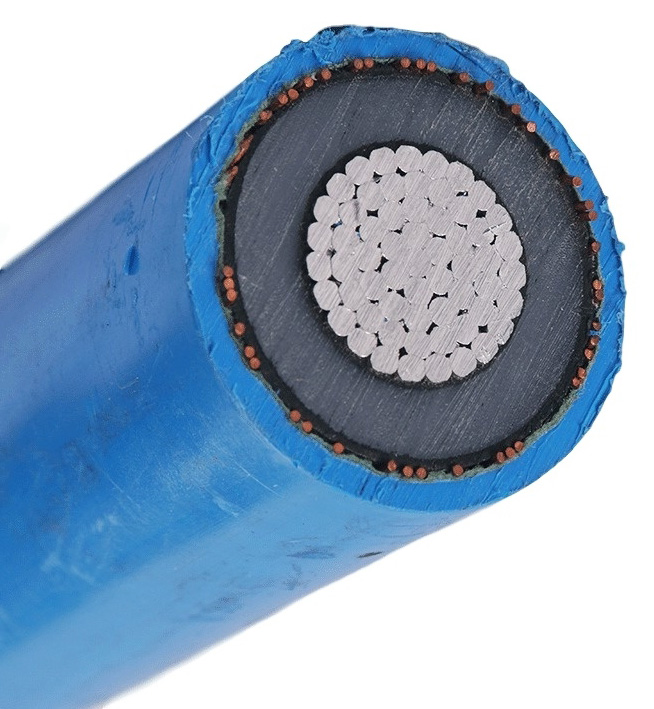

- NA2XSY Single Core Cable (AL/XLPE/CWS/PVC)
AL / XLPE / CWS / PVC Cable, 6/10kV 8.7/15kV 12/20kV 18/30kV
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.

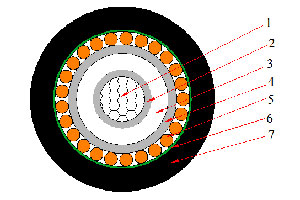

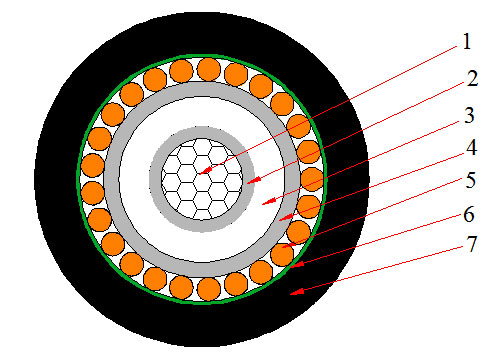

Construction
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper wire and copper tape
6)Outer sheath: Polyvinyl chloride PVC
Specifications
IEC 60228 Conductors
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 2: Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
Parameters
Single Core Cable - 6/10kV and 8.7/15kV| No. of cores and nominal cross section | Thickness of insulation | Cross section of Screen | Thickness of Sheath | Approx. overall Diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | ||
| (mm2) | (mm) | (mm2) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) | |
| YJLSV (NA2XSY)- 6/10kV | |||||||||
| 1x25/16 | 3.4 | 16 | 1.8 | 21.8 | 568 | 1.20 | 120 | 115 | |
| 1x35/16 | 3.4 | 16 | 1.8 | 22.9 | 619 | 0.868 | 153 | 145 | |
| 1x50/16 | 3.4 | 16 | 1.8 | 24.0 | 684 | 0.641 | 183 | 171 | |
| 1x70/16 | 3.4 | 16 | 1.8 | 25.7 | 782 | 0.443 | 228 | 208 | |
| 1x95/16 | 3.4 | 16 | 1.8 | 27.2 | 891 | 0.320 | 278 | 248 | |
| 1x120/16 | 3.4 | 16 | 1.8 | 28.7 | 992 | 0.253 | 321 | 283 | |
| 1x150/25 | 3.4 | 25 | 1.8 | 30.2 | 1184 | 0.206 | 364 | 315 | |
| 1x185/25 | 3.4 | 25 | 1.9 | 32.0 | 1340 | 0.164 | 418 | 357 | |
| 1x240/25 | 3.4 | 25 | 2.0 | 34.7 | 1560 | 0.125 | 494 | 413 | |
| 1x300/25 | 3.4 | 25 | 2.1 | 36.9 | 1790 | 0.100 | 568 | 466 | |
| 1x400/35 | 3.4 | 35 | 2.2 | 40.2 | 2200 | 0.0778 | 660 | 529 | |
| 1x500/35 | 3.4 | 35 | 2.3 | 44.1 | 2590 | 0.0605 | 767 | 602 | |
| YJLSV (NA2XSY)- 8.7/15kV | |||||||||
| 1x25/16 | 4.5 | 16 | 1.8 | 23.8 | 648 | 1.20 | 100 | 105 | |
| 1x35/16 | 4.5 | 16 | 1.8 | 24.8 | 703 | 0.868 | 153 | 145 | |
| 1x50/16 | 4.5 | 16 | 1.8 | 26.1 | 772 | 0.641 | 183 | 172 | |
| 1x70/16 | 4.5 | 16 | 1.8 | 27.8 | 876 | 0.443 | 228 | 210 | |
| 1x95/16 | 4.5 | 16 | 1.8 | 29.4 | 990 | 0.320 | 278 | 250 | |
| 1x120/16 | 4.5 | 16 | 1.9 | 31.0 | 1110 | 0.253 | 321 | 285 | |
| 1x150/25 | 4.5 | 25 | 1.9 | 32.5 | 1308 | 0.206 | 364 | 318 | |
| 1x185/25 | 4.5 | 25 | 2.0 | 34.4 | 1472 | 0.164 | 418 | 360 | |
| 1x240/25 | 4.5 | 25 | 2.1 | 36.8 | 1704 | 0.125 | 494 | 418 | |
| 1x300/25 | 4.5 | 25 | 2.1 | 39.0 | 1928 | 0.100 | 568 | 471 | |
| 1x400/35 | 4.5 | 35 | 2.3 | 42.4 | 2371 | 0.0778 | 660 | 535 | |
| 1x500/35 | 4.5 | 35 | 2.3 | 45.3 | 2754 | 0.0605 | 767 | 608 | |
| No. of cores and nominal cross section | Thickness of insulation | Cross section of screen | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor（20℃） | Current carrying capacity | ||
| (mm2) | (mm) | (mm2) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) | |
| YJLSV (NA2XSY)- 12/20kV | |||||||||
| 1x35/16 | 5.5 | 16 | 1.8 | 26.9 | 778 | 0.868 | 175 | 115 | |
| 1x50/16 | 5.5 | 16 | 1.8 | 28.2 | 851 | 0.641 | 210 | 140 | |
| 1x70/16 | 5.5 | 16 | 1.9 | 30.1 | 974 | 0.443 | 255 | 170 | |
| 1x95/16 | 5.5 | 16 | 1.9 | 31.7 | 1094 | 0.320 | 310 | 205 | |
| 1x120/16 | 5.5 | 16 | 2.0 | 33.3 | 1219 | 0.253 | 345 | 240 | |
| 1x150/25 | 5.5 | 25 | 2.0 | 34.8 | 1422 | 0.206 | 400 | 270 | |
| 1x185/25 | 5.5 | 25 | 2.1 | 36.7 | 1593 | 0.164 | 455 | 310 | |
| 1x240/25 | 5.5 | 25 | 2.1 | 38.9 | 1815 | 0.125 | 530 | 360 | |
| 1x300/25 | 5.5 | 25 | 2.2 | 41.3 | 2065 | 0.100 | 605 | 420 | |
| 1x400/35 | 5.5 | 35 | 2.3 | 44.5 | 2499 | 0.0778 | 700 | 485 | |
| 1x500/35 | 5.5 | 35 | 2.4 | 47.6 | 2912 | 0.0605 | 795 | 535 | |
| YJLSV (NA2XSY)- 18/30kV | |||||||||
| 1x35/16 | 8.0 | 16 | 2.0 | 32.2 | 1042 | 0.868 | 185 | 134 | |
| 1x50/16 | 8.0 | 16 | 2.0 | 33.4 | 1138 | 0.641 | 222 | 157 | |
| 1x70/16 | 8.0 | 16 | 2.1 | 35.3 | 1276 | 0.443 | 278 | 192 | |
| 1x95/16 | 8.0 | 16 | 2.1 | 37.1 | 1426 | 0.320 | 338 | 229 | |
| 1x120/16 | 8.0 | 16 | 2.2 | 38.6 | 1559 | 0.253 | 391 | 260 | |
| 1x150/25 | 8.0 | 25 | 2.2 | 40.6 | 1792 | 0.206 | 440 | 288 | |
| 1x185/25 | 8.0 | 25 | 2.3 | 42.3 | 1971 | 0.164 | 504 | 324 | |
| 1x240/25 | 8.0 | 25 | 2.3 | 44.8 | 2234 | 0.125 | 593 | 373 | |
| 1x300/25 | 8.0 | 25 | 2.4 | 47.2 | 2497 | 0.100 | 677 | 419 | |
| 1x400/35 | 8.0 | 35 | 2.5 | 50.4 | 2967 | 0.0778 | 769 | 466 | |
| 1x500/35 | 8.0 | 35 | 2.6 | 53.3 | 3417 | 0.0605 | 872 | 573 | |
