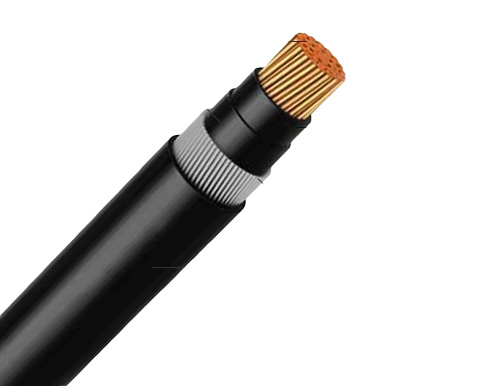

0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

0.6/1 kV NYRY Cable(CU/PVC/SWA/PVC)

NYRY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

Specifications
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

Construction

Click below for specific parameters

Download Data Sheet
VV32/VLV32-0.6/1-kV-single-core VV32/VLV32-0.6/1-kV-multi core

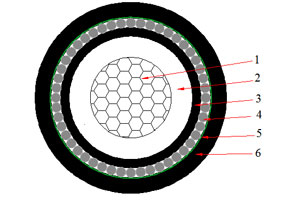

1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material

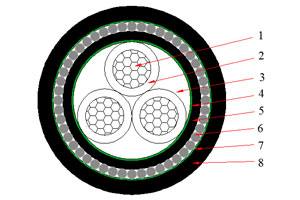

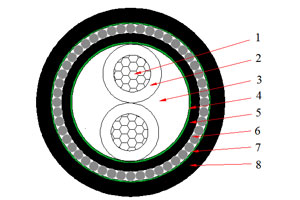

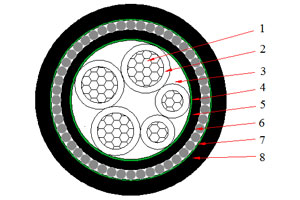

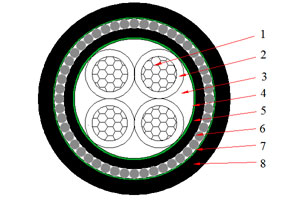

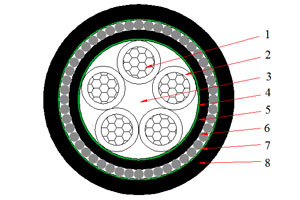

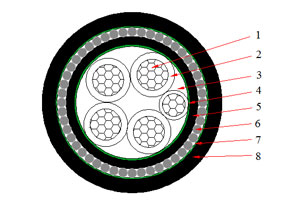

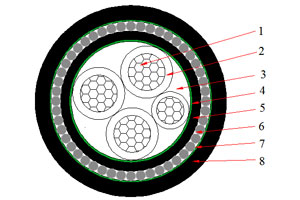

6. Outer sheath: Polyvinyl chloride PVC 		1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material
8. Outer sheath: Polyvinyl chloride PVC
