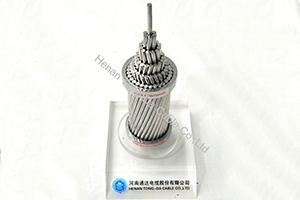

Anti-Corrosion ACSR / Greased ACSR

Application
With the anti-corrosion coating painted on the original ACSR surface, the corrosion resistance of the anti-corrosion ACSR has improved. The product is used in areas with bad weather conditions. It can be used in corrosive areas like coastal areas or industrial zones. This ACSR is filled with anti-corrosive grease applied on the gaps between stranded wires and their external surfaces.

  • Conductor is greased only the steel core a) Conductor is greased only the steel core
  • Conductor is greased except the outer Layer b) Conductor is greased except the outer Layer
  • Conductor is greased including the outer layer surface c) Conductor is greased including the outer layer surface
  • Conductor is greased except the outer surface of the outer layer wires d) Conductor is greased except the outer surface of the outer layer wires
  • Standard
    IEC A1S1A, IEC A1S1B, IEC A1S2A, IEC A1S2B, IEC A1S3A

    Aluminum Conductors Steel Reinforced IEC 61089

    Click to Get the Complete Specific Parameters
    Characteristics of A1/S1A Conductors
    Code number Steel ratio Areas No. of wires Wire dia. Diameter Linear mass Rated strength D.C resistance
    Alum. Steel Total Al St. Alum. Steel Core Cond.
      % mm2 mm2 mm2     mm mm mm mm kg/km kN Ohn/km
    16 17 16 2.67 18.7 6 1 1.84 1.84 1.84 5.53 64.6 6.08 1.7934
    25 17 25 4.17 29.2 6 1 2.30 2.30 2.30 6.91 100.9 9.13 1.1478
    40 17 40 6.67 46.7 6 1 2.91 2.91 2.91 8.74 161.5 14.40 0.7174
    63 17 63 10.5 73.5 6 1 3.66 3.66 3.66 11.0 254.4 21.63 0.4555
    100 17 100 16.7 117 6 1 4.61 4.61 4.61 13.8 403.8 34.33 0.2869
    125 6 125 6.94 132 18 1 2.97 2.97 2.97 14.9 397.9 29.17 0.2304
    125 16 125 20.4 145 26 7 2.47 1.92 5.77 15.7 503.9 45.69 0.2310
    160 6 160 8.89 169 18 1 3.36 3.36 3.36 16.8 509.3 36.18 0.1800
    160 16 160 26.1 186 26 7 2.80 2.18 6.53 17.7 644.9 57.69 0.1805
    200 6 200 11.1 211 18 1 3.76 3.76 3.76 18.8 636.7 44.22 0.1440
    200 16 200 32.6 233 26 7 3.13 2.43 7.30 19.8 806.2 70.13 0.1444
    250 10 250 24.6 275 22 7 3.80 2.11 6.34 21.6 880.6 68.72 0.1154
    250 16 250 40.7 291 26 7 3.50 2.72 8.16 22.2 1007.7 87.67 0.1155
    315 7 315 21.8 337 45 7 2.99 1.99 5.97 23.9 1039.6 79.03 0.0917
    315 16 315 51.3 366 26 7 3.93 3.05 9.16 24.9 1269.7 106.83 0.0917
    400 7 400 27.7 428 45 7 3.36 2.24 6.73 26.9 1320.1 98.36 0.0722
    400 13 400 51.9 452 54 7 3.07 3.07 9.21 27.6 1510.3 123.04 0.0723
    450 7 450 31.1 481 45 7 3.57 2.38 7.14 28.5 1485.2 107.47 0.0642
    450 13 450 58.3 508 54 7 3.26 3.26 9.77 29.3 1699.1 138.42 0.0643
    500 7 500 34.6 535 45 7 3.76 2.51 7.52 30.1 1650.2 119.41 0.0578
    500 13 500 64.8 565 54 7 3.43 3.43 10.30 30.9 1887.9 153.80 0.0578
    560 7 560 38.7 599 45 7 3.98 2.65 7.96 31.8 1848.2 133.74 0.0516
    560 13 560 70.9 631 54 19 3.63 2.18 10.90 32.7 2103.4 172.59 0.0516
    630 7 630 43.6 674 45 7 4.22 2.81 8.44 33.8 2079.2 150.45 0.0459
    630 13 630 79.8 710 54 19 3.85 2.31 11.60 34.7 2366.3 191.77 0.0459
    710 7 710 49.1 759 45 7 4.48 2.99 8.96 35.9 2343.2 169.56 0.0407
    710 13 710 89.9 800 54 19 4.09 2.45 12.30 36.8 2666.8 216.12 0.0407
    800 4 800 34.6 835 72 7 3.76 2.51 7.52 37.6 2480.2 167.41 0.0361
    800 8 800 66.7 867 84 7 3.48 3.48 10.40 38.3 2732.7 205.33 0.0362
    800 13 800 101 901 54 19 4.44 2.61 13.00 39.1 3004.9 243.52 0.0362
    900 4 900 38.9 939 72 7 3.99 2.66 7.98 39.9 2790.2 188.33 0.0321
    900 8 900 75.0 975 84 7 3.69 3.69 11.10 40.6 3074.2 226.50 0.0322
    1000 4 1000 43.2 1043 72 7 4.21 2.80 8.41 42.1 3100.3 209.26 0.0289
    1120 4 1120 47.3 1167 72 19 4.45 1.78 8.90 44.5 3464.9 234.53 0.0258
    1120 8 1120 91.2 1211 84 19 4.12 2.47 12.40 45.3 3811.5 283.17 0.0258
    1250 8 1250 102 1352 84 19 4.35 2.61 13.10 47.9 4253.9 316.04 0.0232
    1250 4 1250 52.8 1303 72 19 4.70 1.88 9.40 47.0 3867.1 261.75 0.0231
